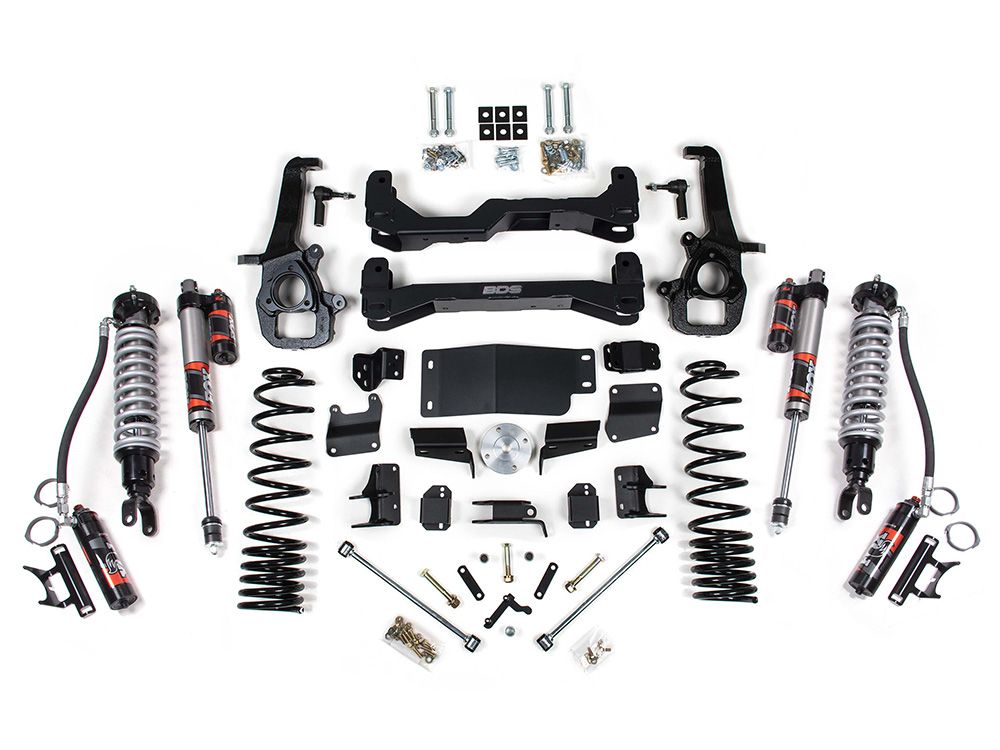

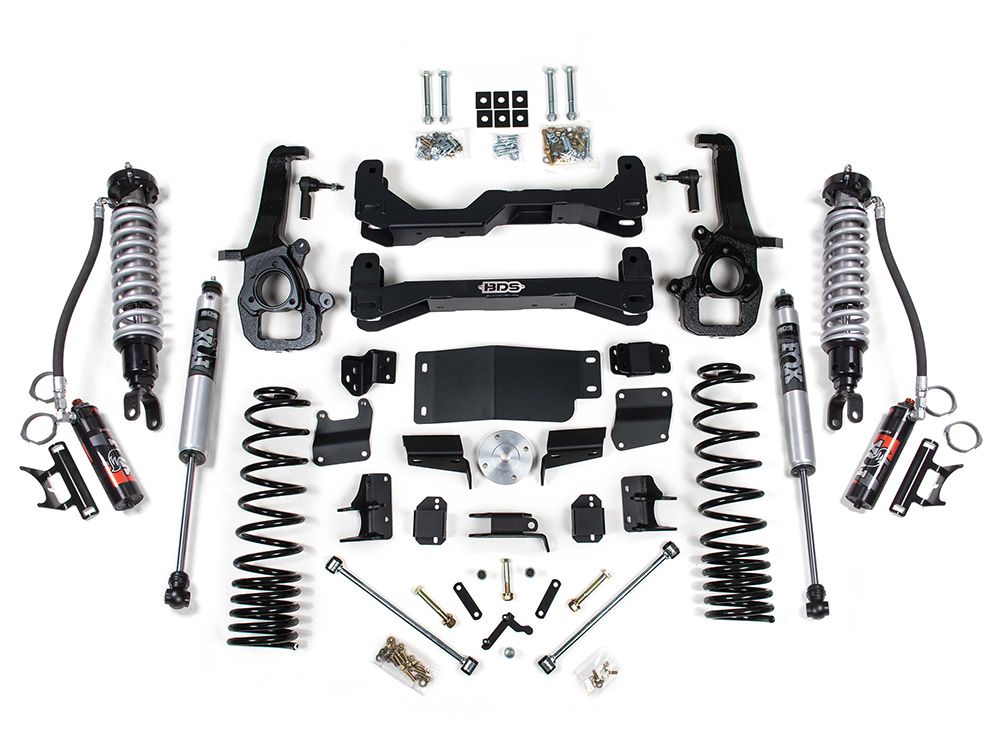

The BDS Suspension BDS1663FPE / BDS1796FPE 4 inch Fox coil-over lift kit for the Dodge Ram 1500 4wd is the ultimate suspension system for your truck. This kit will allow for fitment of up to 35 inch diameter tires for an amazing off-road look and performance. This is done without sacrificing ride quality and handling.

This ultra premium suspension lift kit features Fox 2.5 Performance Elite Coilovers that will dominate the off-road trails while improving on road performance. These coilovers come with DSC (dual speed compression) adjustablity that allows you to fine tune the ride quality with the turn of a dial.

Als included are a set of 1/4 inch thick steel laser cut high clearance crossmembers that are designed to get maximum clearance and provide a rock solid mounting point for the factory lower control arms. 3 piece heavy duty front skid plates connects the cross members while protect steering and drive line components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The factory front driveshaft is maintained with the use of a billet aluminum driveshaft spacer.

The rear end is lifted using 3 inch tall ProRide coil springs intended to level the truck. Proper geometry is maintained with the use of control arm relocation brackets, a rear track bar drop bracket (centers rear axle), extended sway bar end links and bump stop extensions. Fox 2.0 Performance or Fox 2.5 Performance Elite (adjustable) rear gas shocks improve dampening performance on tough terrain while maintaining excellent on road ride quality.

Features and Benefits:

• Ultra Premium Suspension System
• Fox 2.5 Performance Elite Reservoir Coil-overs
• Improves ride quality and off-road performance
• Lifts vehicle 4 inch front / 3 inch rear
• 1/4 Inch Steel High Clearance Cross Members
• 3 Piece Heavy Duty Front Skid Plate
• High Clearance design max clearance
• Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
• Multi-Point Front Differential Relocation System
• Allows use of up 35 inch tires
• Average Install Time: 12 hours
• Proudly made in the USA, using only premium quality components
• This kit is FMVSS No.126 Compliant
• Fox 2.0 Performance IFP or Fox 2.5 Performance Elite (adjustable) Rear Shocks
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits a 35" x 12.50" w/20 x 9 tire and 4.5-5" back spacing
• Fits a 35" x 12.50" w/18 x 9 tire and 4.5-5" back spacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

All Possible SKUs Depending on Options Selected: BDS1663FPE, BDS1757FPE, BDS1796FPE, BDS2109FPE
