6" 2013-2018 Dodge Ram 3500 (w/Diesel Engine) 4WD Radius Arm Lift Kit by BDS Suspension

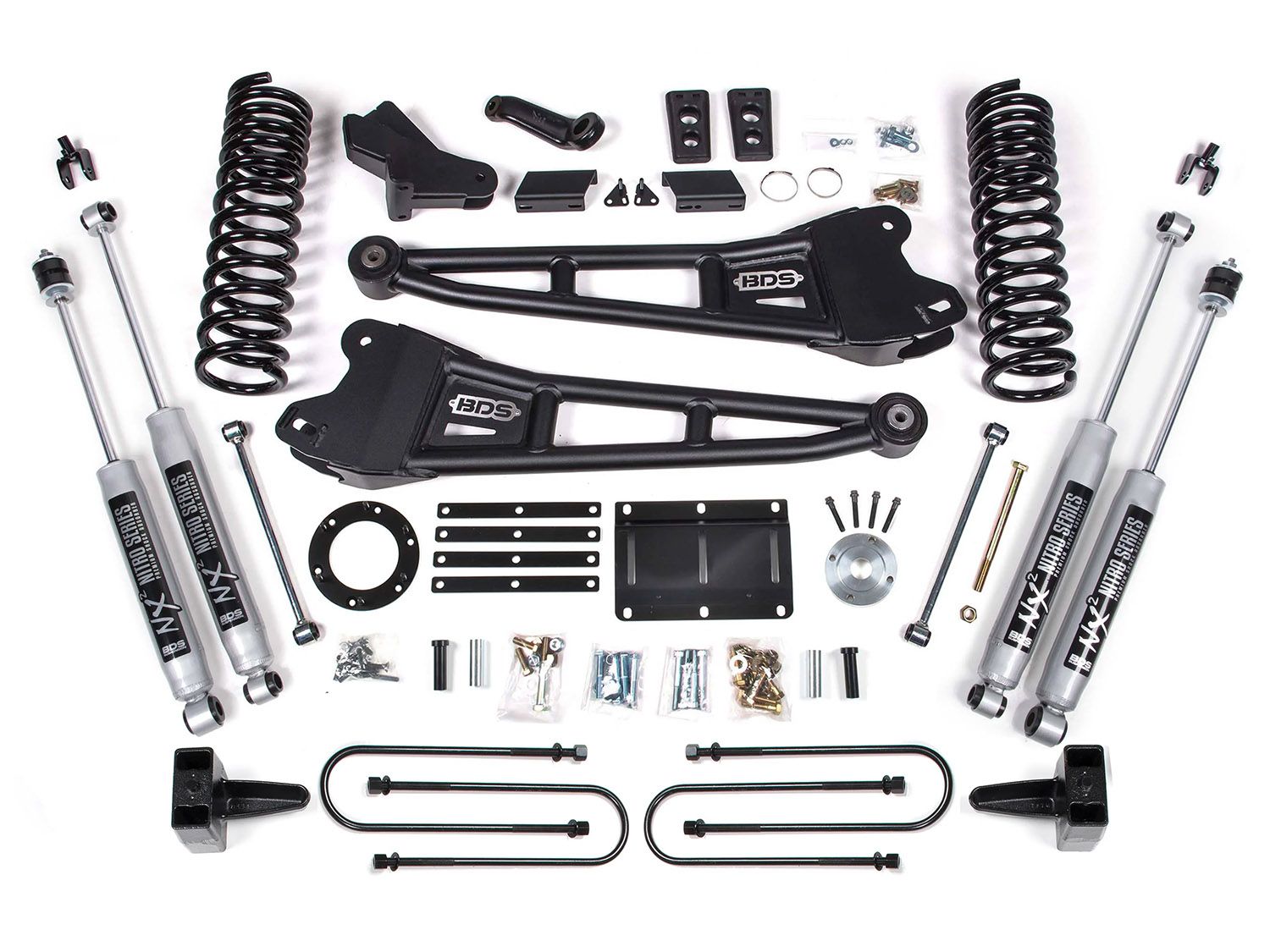

The BDS Suspension BDS2104H 6-inch Radius Arm lift kit for the Dodge Ram 3500 is a fantastic way to upgrade your suspension and fit up to 37-inch tires. Up front, this system utilizes a pair of progressive rate 6" coil springs, providing extra ride height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, and an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar, along with extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. Heavy-duty replacement radius arms are supplied to correct front suspension geometry at the new lift height.

Fox 2.0 Performance IFP Shocks (2-inch diameter aluminum body monotube gas), BDS NX2 Shocks (Nitro Gas), Fox 2.5 HTO Performance Series (2.5-inch diameter aluminum body), or Fox 2.5 Performance Elite Adjustable Shocks (2.5-inch diameter aluminum body with ride adjustment knobs) are included for the front and rear.

Choose from 4-inch, 5-inch blocks or Glideride rear leaf springs in the rear.

All possilbe SKUs depending on optiion selected: BDS2142H BDS2142FS BDS2142PS BDS2142FPE BDS2141H BDS2141FS BDS2141PS BDS2141FPE BDS2104H BDS2104FS BDS2104PS BDS2104FPE BDS2139H BDS2139FS BDS2139PS BDS2139FPE BDS2140H BDS2140FS BDS2140PS BDS2140FPE BDS2134H BDS2134FS BDS2134PS BDS2134FPE

Features and Benefits:

• Allows use of up to 37-inch diameter tires
• Radius Arm upgrade improves handling
• Premium quality components
• Progressive Rate Front Pro-Ride Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 6-7 hours
• Choose from Fox 2.0 Performance IFP Shocks, BDS NX2 Shocks, Fox 2.5 HTO Performance Shocks, or Fox 2.5 Performance Elite Adjustable Shocks (see options)
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 13.50 inch tires w/17 inch x 9 and 5.625 inch backspacing (trimming may be required)
• Fits a 37 inch x 12.50 inch tires w/18 inch x 9 and 4.5 inch backspacing (trimming may be required)
• Fits a 37 inch x 12.50 inch tires w/17 inch x 9 and 4.5 inch backspacing (trimming may be required)

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
