6" 2013-2018 Dodge Ram 3500 (w/Diesel Engine & Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS2106H / BDS2106FS
$2257.76
- +
2257.76

6" 2013-2018 Dodge Ram 3500 (w/Diesel Engine & Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2106H / BDS2106FS
From $2,257.76 Regular Price $2,376.59

6" 2013-2018 Dodge Ram 3500 (w/Diesel Engine & Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2106H / BDS2106FS
From $2,257.76 Regular Price $2,376.59


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

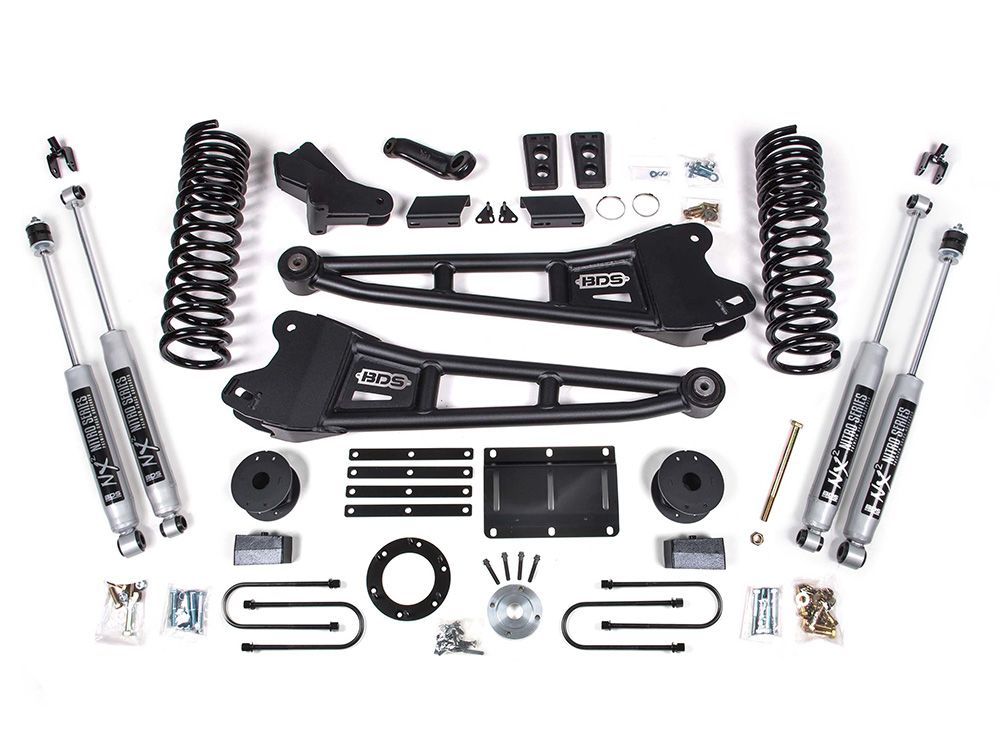

The BDS Suspension BDS2106H 6 inch Radius Arm lift kit for the Dodge Ram 3500 is an awesome way to upgrade your suspension and fit up to 37 inch tires. This kit retains full functionality of the factory rear air-ride and on-road comfort while improving the off-road capability of your truck. Up front this system utilizes a pair of progressive rate 6" coil springs, providing extra ride height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar, along with extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. Heavy duty replacement radius arms are supplied to correct front suspension geometry at the new lift height.

Your choice of BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

In the rear, 5" blocks and u-bolts are supplied to lift and level the stance along with heavy duty air bag spacer brackets. BDS maintains air ride leveling sensors by repositioning them with brackets included in the kit.

Features and Benefits:

  • Allows use of up to 37 inch diameter tires
  • Radius Arm upgrade improves handling
  • Premium quality components
  • Progressive Rate Front Pro-Ride Coil Springs
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation Brackets
  • Rear lift blocks and heavy duty factory air bag spacers
  • Average install time: 6-7 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits a 37 inch x 13.50 inch tires w/17 inch x 9 and 5.625 inch backspacing
  • Fits a 37 inch x 12.50 inch tires w/18 inch x 9 and 4.5 inch backspacing
  • Fits a 35 inch x 12.50 inch tires w/17 inch x 9 and 4.5 inch backspacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Does NOT fit power wagon
  • Does not fit cab and chassis models
  • Fits vehicles with Factory Rear Air Ride only
  • A carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
  • Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  • Vehicle Fitment
    MakeDodge
    ModelRam 3500
    Year Fitment2018, 2017, 2016, 2015, 2014
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS2106H / BDS2106FS
    Item Numberbds_bds2106h
    MPN(UPC)840416413281
    Product LineLift Kits
    Lift Height6 inch
    EngineDiesel
