3" 2023-2024 Ford F250/F350 4WD Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS2201FPE / BDS2202FPE
$4351.56
- +
4351.56

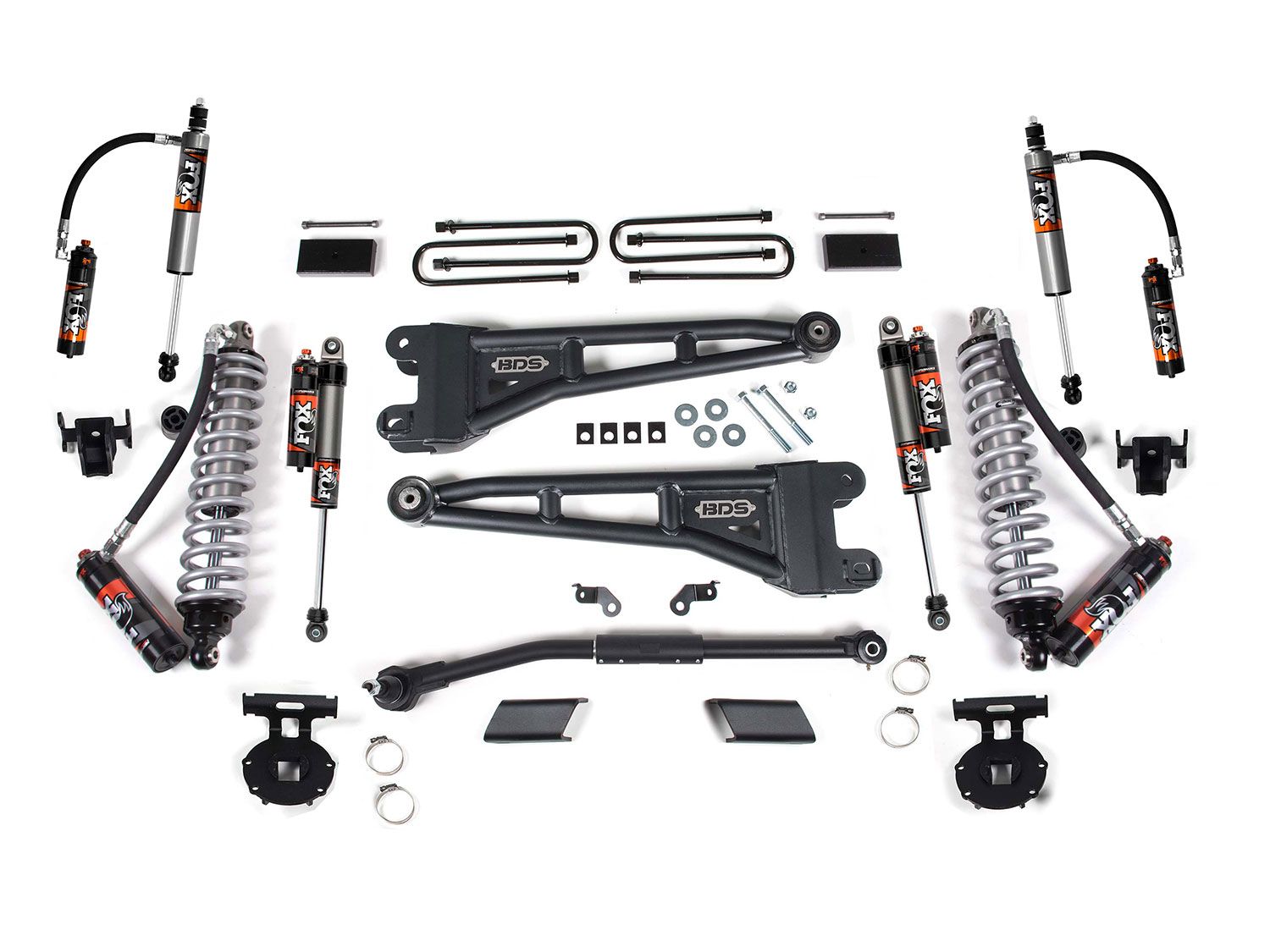

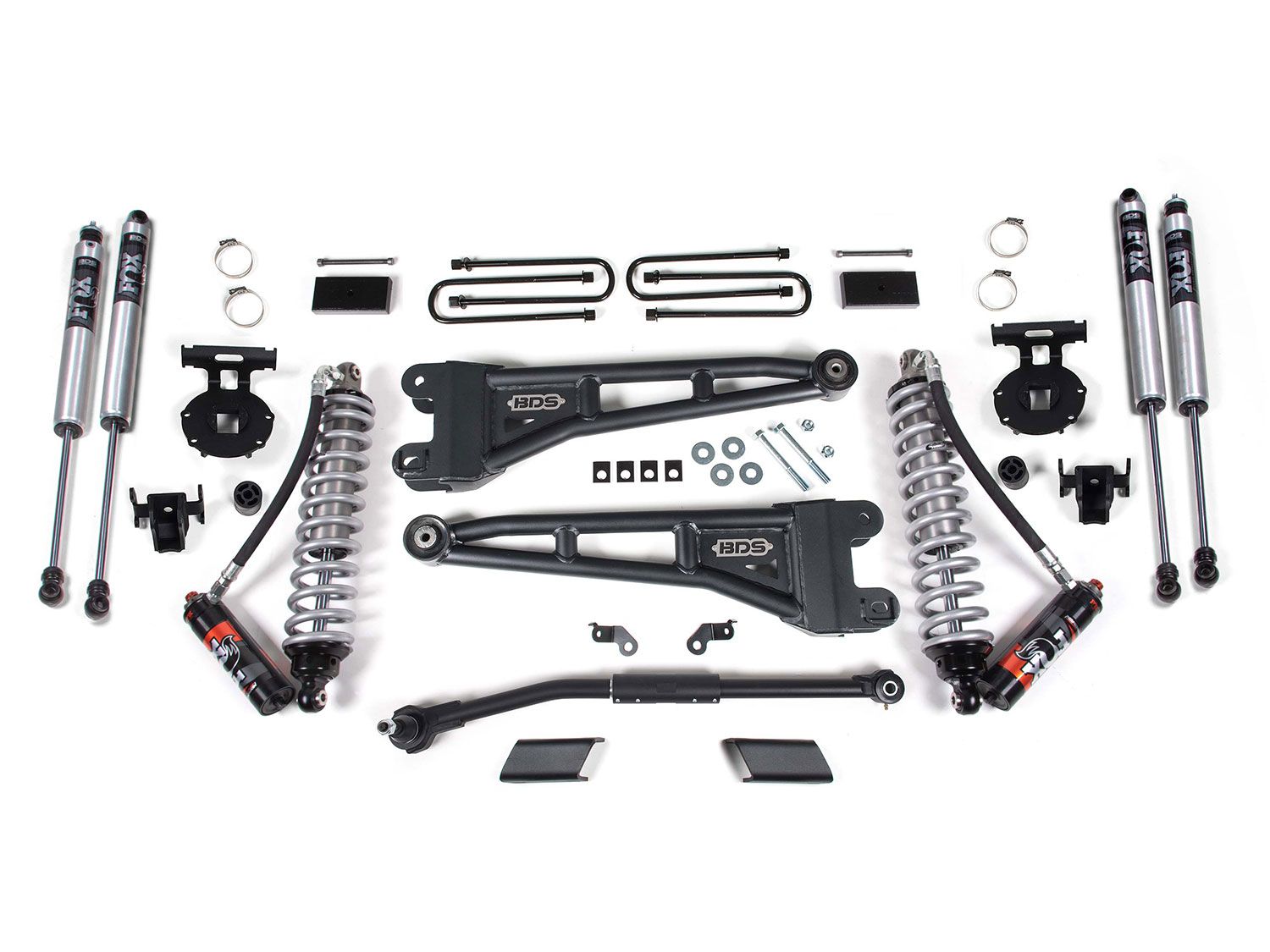

3" 2023-2024 Ford F250/F350 4WD Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2201FPE / BDS2202FPE
From $4,351.56 Regular Price $4,580.59

3" 2023-2024 Ford F250/F350 4WD Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2201FPE / BDS2202FPE
From $4,351.56 Regular Price $4,580.59


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension BDS2201FPE / 2202FPE 3 inch coilover lift kit is the ultimate premium suspension system for the Ford F250 / F350 Super Duty trucks. Featuring Fox 2.5 Performance Elite Remote Reservoir Coil-Overs with DSC (dual speed compression) adjustments to fine tune your ride with the turn of a dial. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. The front axle remains centered with the use a of heavy duty adjustable track bar. Sway bar drop brackets keep the factory bar from binding.

Choose the shocks that are right for you! Fox 2.0 Performance Shocks are a great option, using a 2 inch aluminum body and monotube gas design. Upgrade to the awesome Fox Performance Elite 2.5 shocks with DSC adjustment. Featuring a 2.5 inch aluminum body and remote reservoirs. Each reservoir houses a DSC adjustment knob that gives you control of your ride, with adjustments from smooth to firm.

In the rear 1" bolt-on lift block and new black e-coated u-bolts to level stance while retaining the factory rear springs for ride quality and tow capacity

Top Features and Benefits

  • Ultimate Premium Suspension Lift Kit for Ford F250 / F350 models
  • Fox 2.5 Performance Elite Coilovers replace factory coil springs for unmatched comfort and performance
  • Coilovers feature DSC (dual speed compression) to allow fine tuning of your ride with the turn of a dial
  • 3 inch front lift / 1 inch rear lift for level ride
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Front and Rear Fox 2.0 Performance Shocks or Fox 2.5 Performance Elite DSC Adjustable Shocks
  • Allows use of up to 35 inch tires
  • Average Install Time: 5 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • 35" x 12.50" w/17 x 9 and 4.5"-5" back spacing
  • 35" x 12.50" w/18 x 9 and 4.5"-5" back spacing
  • 35" x 12.50" w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.

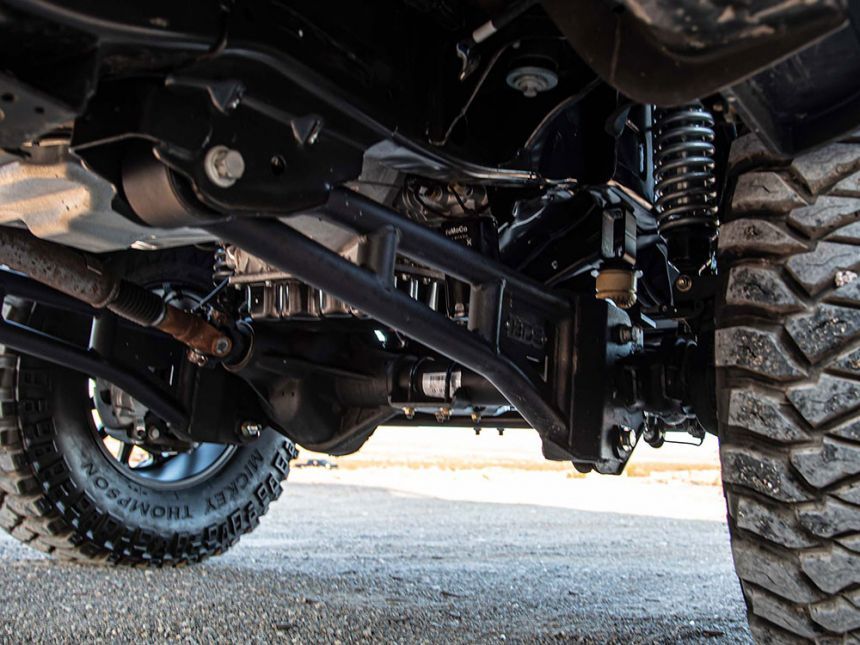

Heavy Duty Radius Arms
Included are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great!
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Important Notes1. Designed for use on diesel models, but can be installed on gas trucks. Will achieve additional 3/4" front ride height.
2. Installation requires a torque wrench capable of 406 ft-lbs.
3. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
4. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
5. Trucks without top mounted overload spring will require (x4) UBT4031 ubolts available to purchase separately.
6. Trucks equipped with radius arm mounted ride height sensors (onboard scales) require SKU 123303.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2024, 2023
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS2201FPE / BDS2202FPE
Item Numberbds_bds2201fpe-2202fpe
MPN(UPC)840416413588
Product LineLift Kits
Lift Height3 inch
