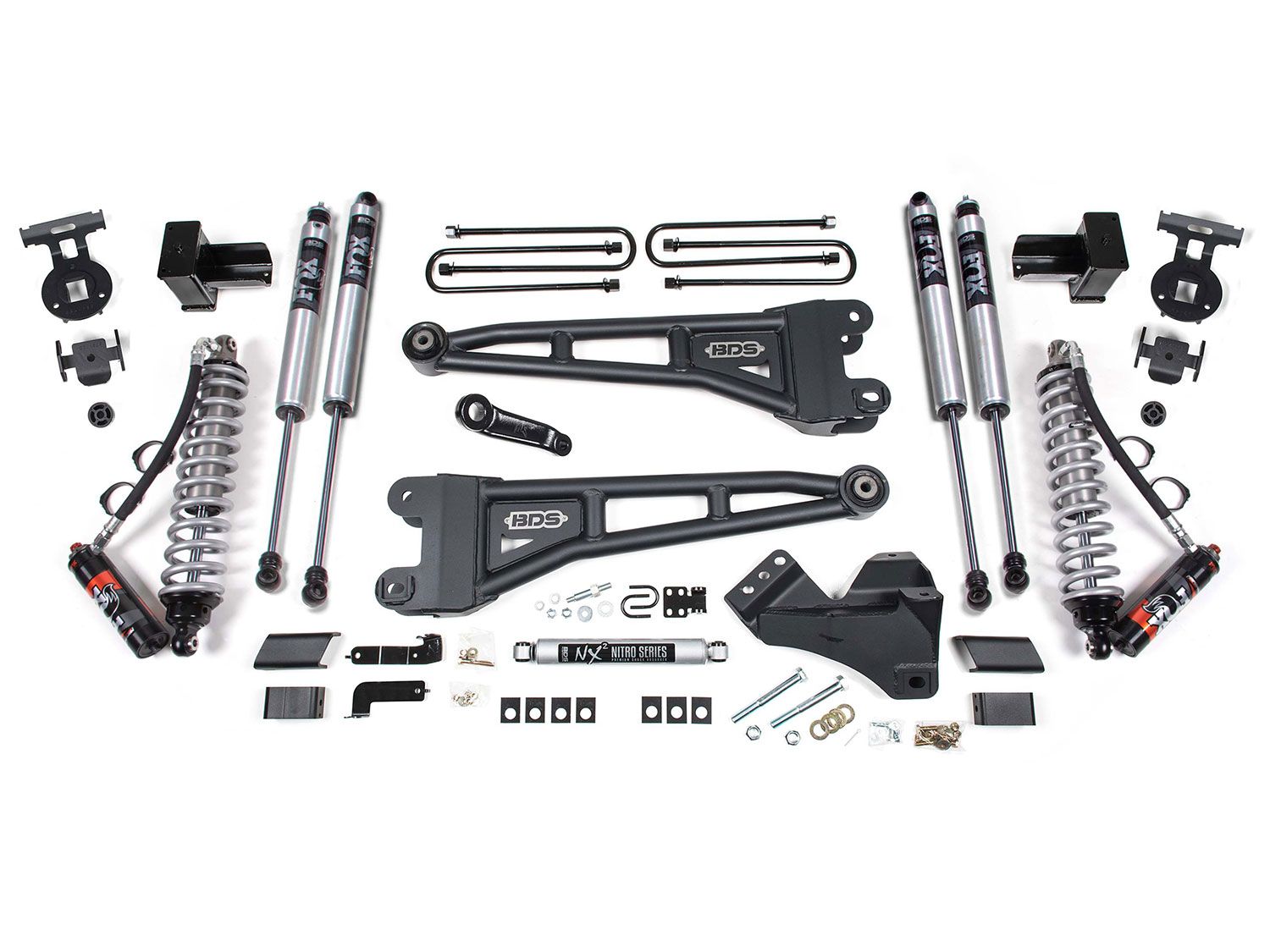

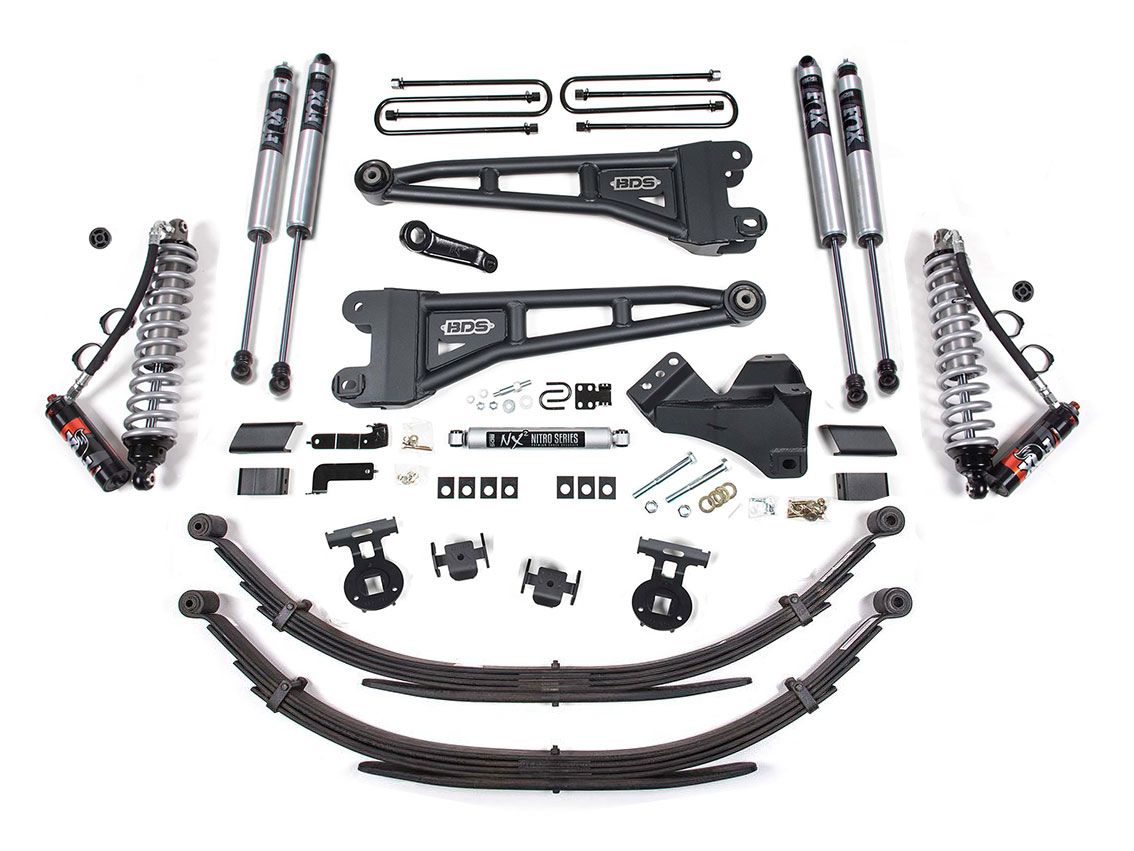

5" 2023-2025 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2203FPE / BDS2208FPE
From $4,363.86 Regular Price $4,593.54


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension BDS2203FPE / BDS2208FPE is the ultimate premium 5-inch lift kit for the Ford F250 / F350 Super Duty trucks. Featuring Fox 2.5 Performance Elite Series Remote Reservoir Coil-Overs. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. It features a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. A forged drop pitman arm and a supplied integrated drag link flip corrects steering angles. The front axle remains centered with the use of a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by a pair of 4.5-inch lift blocks featuring integrated bump stop wings and e-coated extended u-bolts or upgrade to BDS GlideRide rear leaf springs for added support and ride comfort.

Choose the shocks that are right for you! Fox 2.0 Performance Shocks are a great option, using a 2-inch aluminum body and monotube gas design. Upgrade to the excellent Fox Performance Elite 2.5 shocks with DSC adjustment. It features a 2.5-inch aluminum body and remote reservoirs. Each reservoir houses a DSC adjustment knob that gives you control of your ride, with adjustments from smooth to firm.

Features and Benefits:

  • Ultimate Premium Suspension Lift Kit for Ford F250 / F350 models
  • 5 5-inch front lift, 3 3-inch rear lift
  • Fox 2.5 Performance Elite Coil-Overs replace factory coil springs
  • Coil-Overs pre-tuned for vehicle, improve ride quality and suspension performance
  • DSC Adjusters in coilover reservoirs allow you to adjust ride from soft to firm with the turn of a dial
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pitman arm to correct steering angles
  • Front and Rear Fox 2.0 Performance Shocks or Fox 2.5 Performance Elite DSC Adjustable Shocks
  • Allows use of up to 37-inch tires
  • Average Installation Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 37" x 12.50" tires w/17 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

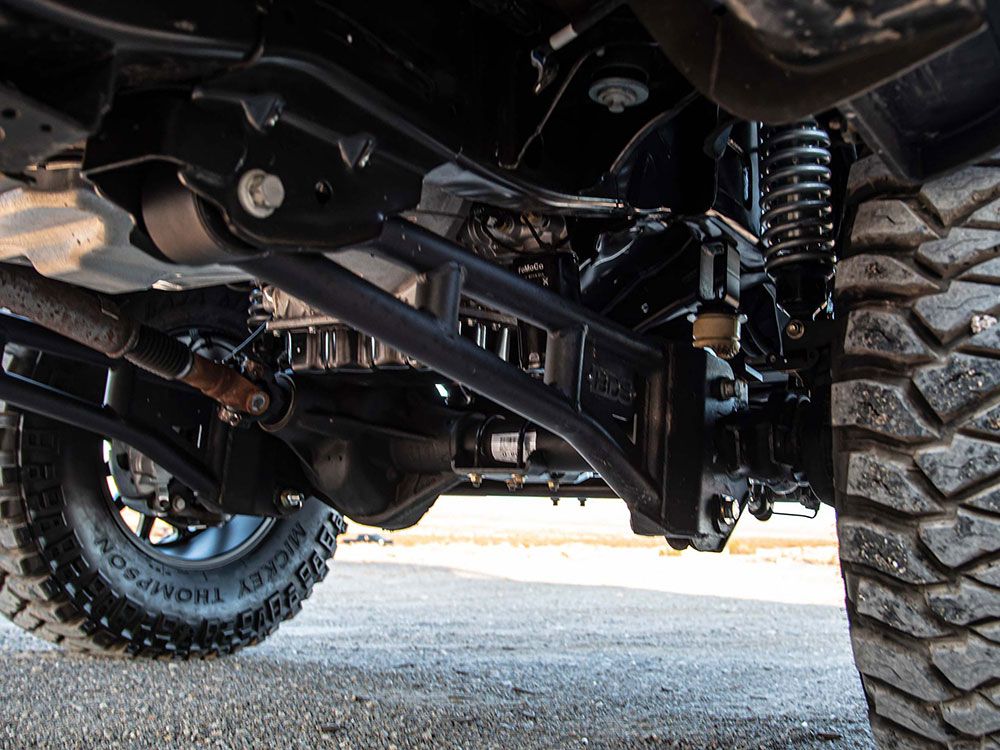

Heavy Duty Radius Arms
Included are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great!
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Fox 2.5 Performance Elite Adjustable Shocks
The Fox 2.5 Performance Elite shocks provide a serious suspension upgrade. The 2.5 inch diameter aluminum body and external reservoir dramatically increase oil volume to fight heat building in extreme conditions. With the turn of a knob you can adjust compression settings for various types of terrain, load and speed conditions.
Important Notes
  • Fits Diesel Models Only
  • Removal of the factory leaf spring block required. Net rear lift will vary depending on height of factory block, but will result in a level stance.
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 37 x 12.50 tires may require minor trimming.
  • Trucks equipped with radius arm mounted ride height sensors (onboard scales) require SKU 123303.
  • Vehicles with factory weight scale height sensors on rear springs cannot use the replacement rear spring lift option.
  • Vehicle Fitment
    MakeFord
    ModelF250, F350
    Year Fitment2025, 2024, 2023
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS2203FPE / BDS2208FPE
    Item Numberbds_bds2203fpe-22008fpe
    MPN(UPC)840416413601
    Product LineLift Kits
    Lift Height5 inch
