5" 2023 Ford F250/F350 4WD Radius Arm Performance Elite Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 2205FPE / 2210FPE
As low as $4,711.69

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

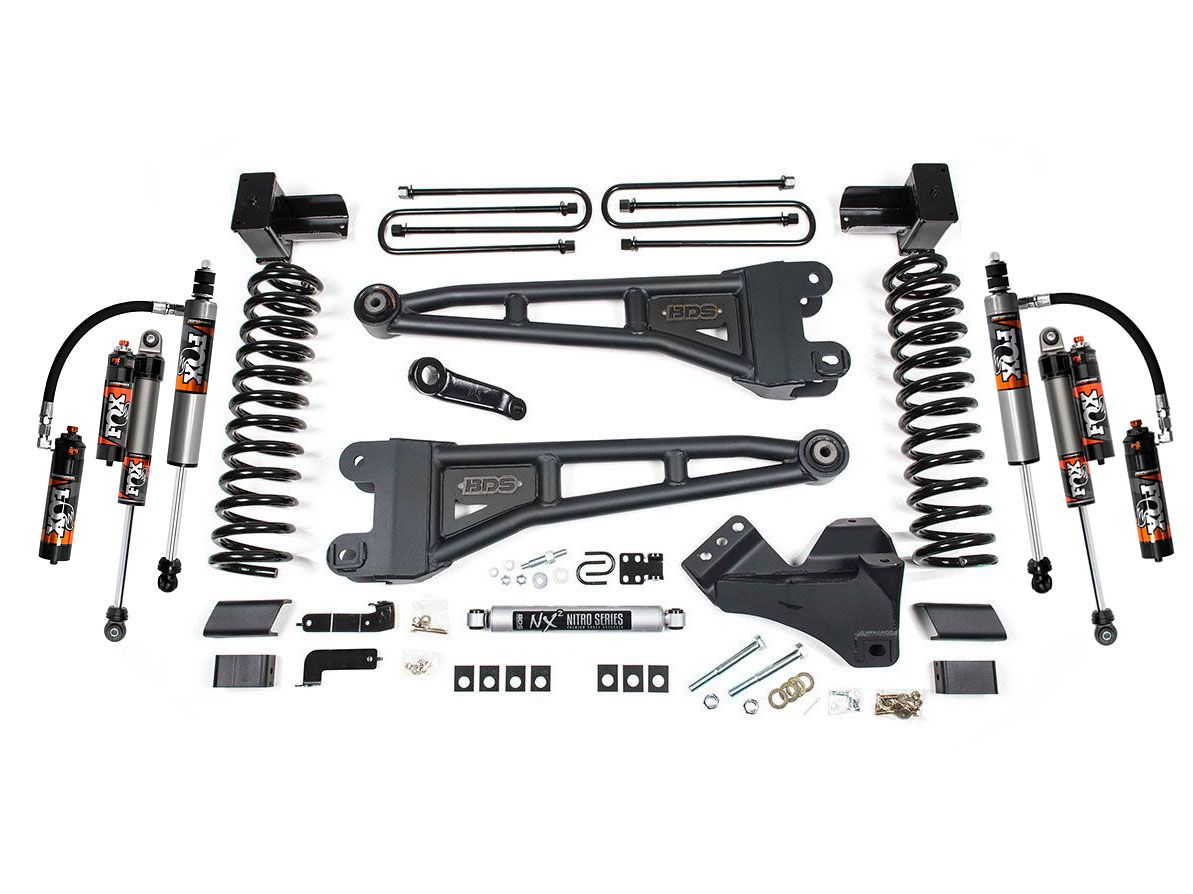

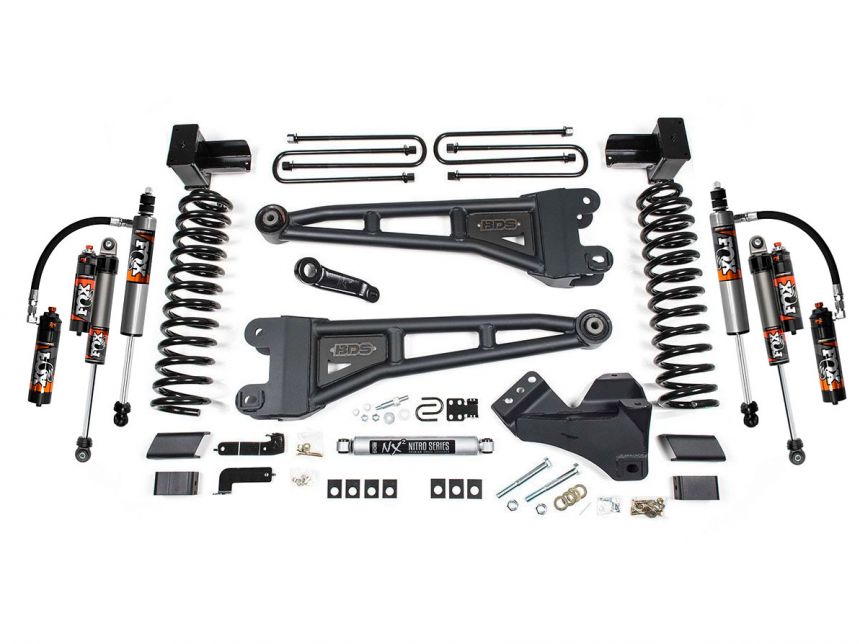

The BDS Suspension 2205FPE / 2210FPE 5 inch lift kit is an great method to lift your Ford F250 / F350 to allow for use of up to 37 inch diameter tires. Built around heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle.

BDS Pro-Ride front coil springs lift the front end 5 inches while maintaining performance and ride quality.  A forged drop pit man arm corrects steering angles along with a  supplied integrated drag link flip.  The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket.

This upgraded lift kit includes the awesome Fox 2.5 Peformance Elite remote reservoir front and rear shocks. Using an aluminum 2.5 inch body these shock giving superior damping and heat dispersion.  Each reservoir houses the DSC adjustment knob that allows fine tuning of your shocks from smooth to firm.

In the rear the factory blocks are replaced by a pair of 4.5 inch lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts.

Features and Benefits:

  • 5 inch Pro-Ride Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pit man arm to correct steering angles
  • Fox 2.5 Performance Elite DSC Adjustable Ride Shocks (soft to firm with the turn of a dial)
  • Allows use of up to 37 inch tires
  • Average Install Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 37" x 12.50" tires w/17 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Important Notes
  • Removal of the factory leaf spring block required. Net rear lift will vary depending on height of factory block, but will result in a level stance.
  • Front exhaust modification may be required to clear front drive shaft (Gas Only).
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS_123402)
  • Vehicle Fitment
    ModelF250, F350
    Year Fitment2023
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number2205FPE / 2210FPE
    Item Numberbds_2205fpe
    Product LineLift Kits
    Lift Height5 inch
