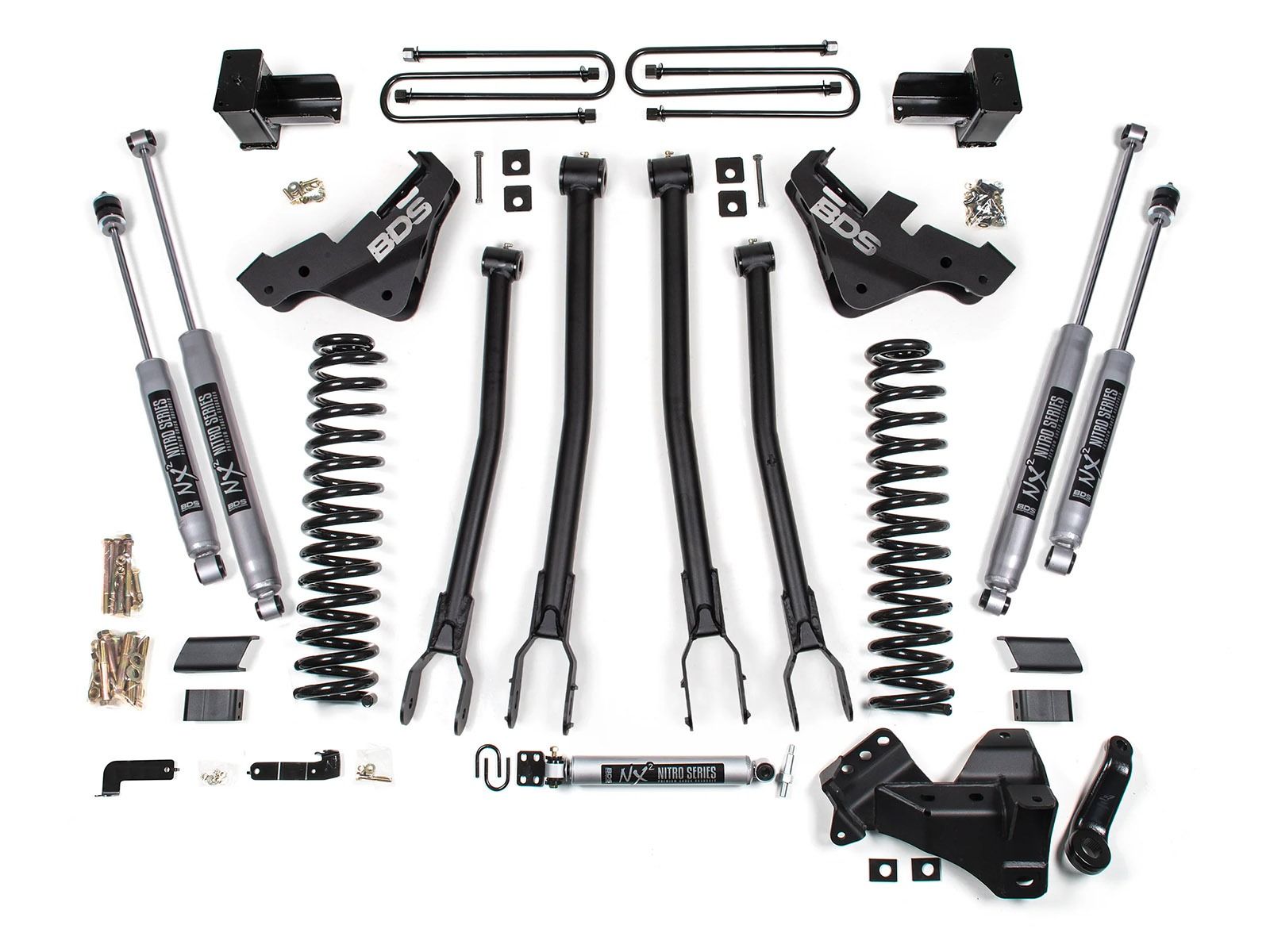

5" 2023-2026 Ford F250/F350 4WD 4-Link Arm Lift Kit by BDS Suspension

The BDS Suspension BDS2246H / BDS2248H 5-inch 4-link arm lift kit for the Ford F250 / F350 allows for use of up to 37-inch diameter tires.  This awesome suspension system is designed to replace the factory radius arms with BDS's 4-link arm conversion. This will improve your truck's wheel travel, providing enhanced stability, strength, and caster control. BDS Pro-Ride front coil springs lift the front end 5 inches while maintaining performance and ride quality. The front axle remains centered with the use of a heavy-duty track bar relocation bracket. A forged drop pitman arm maintains proper steering angles.

In the rear, the factory blocks are replaced by a pair of lift blocks (size depends on the number of main leaves in OE leaf springs) that feature integrated bump stop wings along with e-coated extended u-bolts. You also have the option to upgrade to Pro-Glide rear leaf springs instead of lift blocks. These are great for reducing axle wrap and creating a more controlled and stable feel.

4-Link Conversion

This kit replaces the factory stamped steel radius arms with the BDS 4-link system to enhance suspension geometry, improving both handling and overall stability. This bolt-on upgrade utilizes heavy-duty 1/4-inch steel brackets to securely mount the robust upper and lower control arms, ensuring proper axle alignment and minimizing caster variation throughout the full range of suspension travel.

Features and Benefits:

• 5-inch Pro-Ride Coil Springs feature a smooth ride, top performance
• 4-Link Conversion Kit (replaces factory radius arms)
• Better stability, strength, and caster during front wheel travel
• Front track bar bracket to the center axle
• Choose from BDS NX2 Ntiro Gas (2-inch steel body), Fox 2.0 Performance (2-inch Aluminum body), Fox 2.5 Performance Series HTO (2.5-inch Aluminum body), or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Allows use of up to 37-inch tires
• Average Install Time: 8 - 10 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 37" x 12.50" w/17 x 9 tires and 5" back spacing
• Fits 37" x 12.50" w/20 x 9 tires and 5" back spacing

Shock Options

• BDS NX2 Nitro Gas: Twin-tube nitro-charged gas design, 2" steel body with silver powder coating
• FOX 2.0 Performance Series: 2" impact extruded aluminum body and IFP monotube design, 5/8" chrome-plated alloy steel shaft, Race-developed high-flow piston design with application-specific valving
• FOX 2.5 Performance Series HTO: 2.5" impact extruded aluminum body and IFP monotube design, 5/8" chrome-plated alloy steel shaft, Hydraulic Top Out (HTO) piston reduces harsh top-out and improves ride comfort
• FOX 2.5 Performance Elite: 2.5" impact extruded aluminum body, External Reservoir, 7/8-inch diameter piston rod, DSC - Dual Speed Compression Adjuster to fine-tune ride quality

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase. Click here for more info
