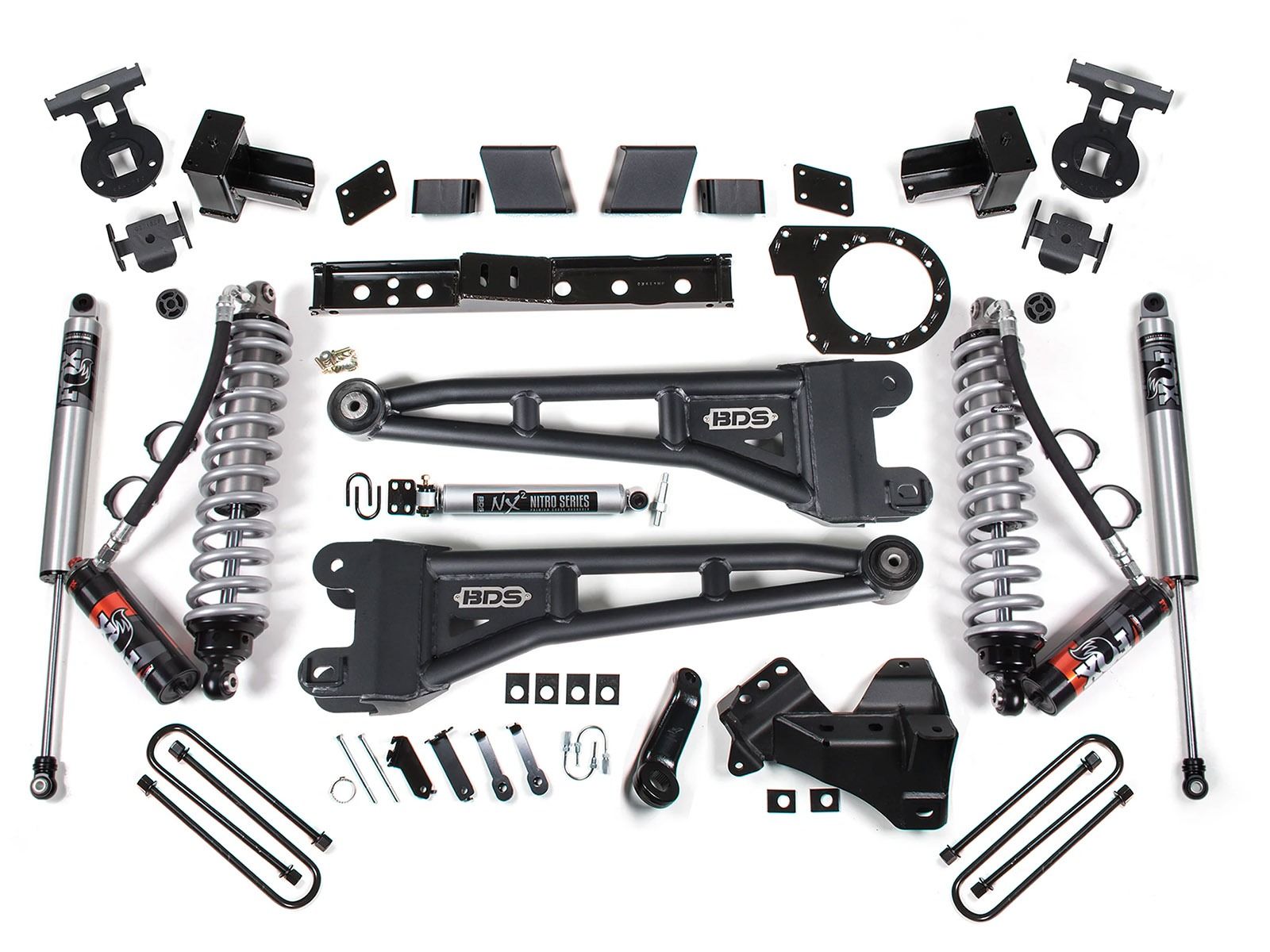

7" 2023-2026 Ford F350 4WD (w/dual rear wheels & diesel engine) Fox 2.5 Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension

This BDS Suspension BDS2260PES / BDS2260PPS is the ultimate premium 7-inch lift kit for the Ford F350 Dually Super Duty trucks. Featuring Fox 2.5 Performance Elite Series Remote Reservoir Coil-Overs. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. It features a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle. A forged drop pitman arm and a supplied integrated drag link flip corrects steering angles. The front axle remains centered with the use of a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by a pair of lift blocks featuring integrated bump stop wings and e-coated extended u-bolts.

Choose the shocks that are right for you! Fox 2.5 Performance HTO Shocks are a great option, using a 2.5-inch aluminum body and monotube gas design. Upgrade to the excellent Fox Performance Elite 2.5 shocks with DSC adjustment. It features a 2.5-inch aluminum body and remote reservoirs. Each reservoir houses a DSC adjustment knob that gives you control of your ride, with adjustments from smooth to firm.

Features and Benefits:

• Ultimate Premium Suspension Lift Kit for Ford F350 dually models
• 7-inch front lift, 4.5-inch rear lift
• Fox 2.5 Performance Elite Coil-Overs replace factory coil springs
• Coil-Overs pre-tuned for the vehicle, improve ride quality and suspension performance
• DSC Adjusters in coilover reservoirs allow you to adjust ride from soft to firm with the turn of a dial
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Rear Fox 2.5 Performance HTO Shocks or Fox 2.5 Performance Elite DSC Adjustable Shocks
• Allows use of up to 38-inch tires
• Average Installation Time: 6 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 38" x 13.50" tires w/17 x 10 and 5" back spacing
• Fits 38" x 13.50" tires w/18 x 10 and 5" back spacing
• Fits 38" x 13.50" tires w/20 x 10 and 5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
