3.5" 2013-2018 Dodge Ram 3500 4wd (w/Diesel Engine) Backcountry Lift System by Carli Suspension

Brand: Carli Suspension | SKU: CS-D3-BC-CS-1319-D
$3,460.00

3.5" 2013-2018 Dodge Ram 3500 4wd (w/Diesel Engine) Backcountry Lift System by Carli Suspension

Brand: Carli Suspension | SKU: CS-D3-BC-CS-1319-D
$3,460.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply



View all Options Available for this Kit

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

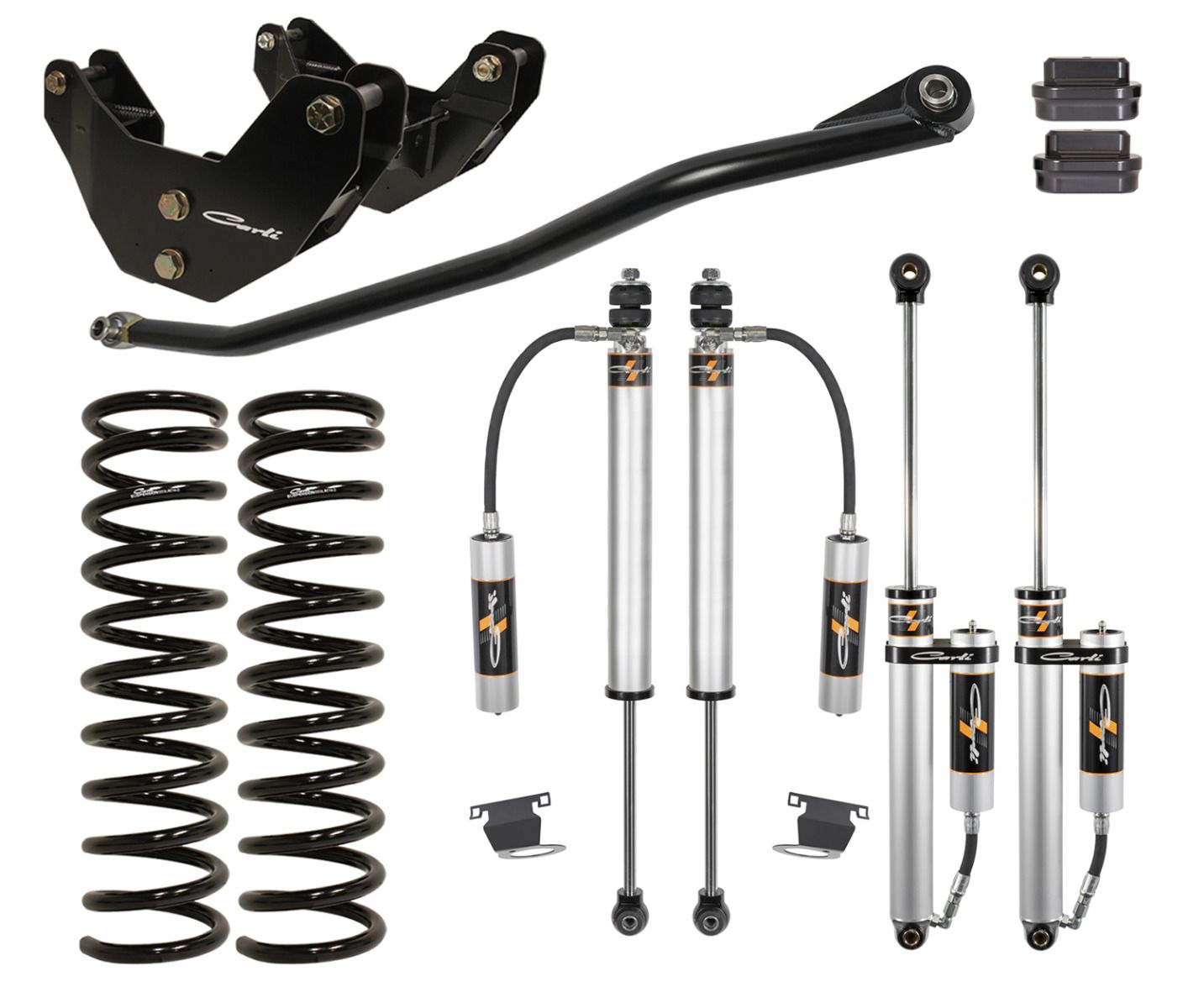

This Carli Suspension CS-D3-BC-CS-1319-D Backcountry 3.5 inch lift system for the Dodge Ram 3500 4wd diesel models is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. It is perfect for Ram owners wanting the best ride quality during on-road, highway, towing/hauling along with slow to mid speed off road use.

Featured in this lift kit system are 3.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 remote reservoir shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome plated shafts are also used.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Radius arm drop brackets lower the factory radius arms which rotates the axle back to factory angles to maintain proper caster and geometry. Made from 1/4 inch cold rolled steel these heavy duty brackets will provide a solid link between the arms and chassis.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 2" lift add-a-pack kit (most economical and maintains factory payload) or the Carli progressive rate 2" lift leaf springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a 3/4 ton spec. You can make your selection in the options section below.

Features & Benefits:

  • 3.25 to 3.5 inch front lift (depending on cab configuration) / 0 to 2.5 inch rear lift
  • Premium lift kit optimized for on-road road quality, towing and slow to mid speed off-roading
  • Front linear rate coil springs - with reduced linear rate to improve ride quality
  • Carli SPEC 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
  • Shocks are fully serviceable and rebuild-able
  • Remote reservoir increases oil capacity for better heat management and better overall performance
  • Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
  • Radius arm drop brackets keep proper front caster
  • Rear lift is optional, but Carli progressive 2" lift leaf springs are highly recommended for ride quality and a level ride (see in options below)
  • Front Travel = 9.5" / Rear Travel = 11.3" (50% more suspension travel than stock)
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 37 inch x 12.5 tires

Components Included:

  • CS-DFBD-1: Front Bump Stop Drops
  • CS-DLRC-14-D: Front Liner-Rate Coil Springs
  • CS-DATB-1419: Adjustable Track Bar
  • CS-DRAD-14: Radius Arm Drop Brackets
  • CS-DCM-20-HK: Transmission Crossmember, extended hardware
  • AS-D3SPKG-CS20RR-A: Carli SPEC 2.0 Resi Shocks, Front and Rear, Reservoir Mounts

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The billet aluminum drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.

Important Notes1. Does not work with rear auto-level air suspension.
2. Fits with diesel engine only
3. While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly (see options below)

Available Options

Front Sway Bar Options (required)
1 of 2 options
Ram 3500 2013-2024 Dodge 4WD (w/3" of lift) Stock Swaybar Drop Bracket Kit

Carli's solid billet aluminum Sway Bar Drops are designed to return your lifted vehicle's sway bar to factory angles. Crafted using cutting-edge machining technology, these drops guarantee precise alignment of your Sway Bar and also create sufficient space for coil clearance.

  • Constructed out of solid machined billet aluminum
  • Designed for factory sway bar
  • Hard-anodized construction for corrosion resistance
  • Eliminate binding that can occur when sway bar is not properly dropped on lifted models
Read More

Carli's solid billet aluminum Sway Bar Drops are designed to return your lifted vehicle's sway bar to factory angles. Crafted using cutting-edge machining technology, these drops guarantee precise alignment of your Sway Bar and also create sufficient space for coil clearance.

  • Constructed out of solid machined billet aluminum
  • Designed for factory sway bar
  • Hard-anodized construction for corrosion resistance
  • Eliminate binding that can occur when sway bar is not properly dropped on lifted models
$165
2 of 2 options
Ram 3500 2013-2024 Dodge 4WD (w/2.5-4" of Front Lift) Torsion Sway Bar by Carli Suspension

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
Read More

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
$870
Rear Lift Selection
1 of 2 options
Ram 3500 2003-2018 Dodge 4WD (w/Diesel Engine and 4" Axle Diameter) 1" Rear Add-A-Pack Kit by Carli Suspension

These Cali Suspension Premium 5-leaf Progressive Add A Pack Kit for the Dodge Ram 3500 is designed to enhance both performance and comfort. By replacing the lower overload leaf with 5 thinner gauge springs, Carli have maintained the factory load capacity while significantly improving mobility.

  • Replaces lower overload spring
  • More predictability and spring progression keeps tires planted
  • Includes U-Bolts and Center Pins
  • Provides 1" total lift
Read More

These Cali Suspension Premium 5-leaf Progressive Add A Pack Kit for the Dodge Ram 3500 is designed to enhance both performance and comfort. By replacing the lower overload leaf with 5 thinner gauge springs, Carli have maintained the factory load capacity while significantly improving mobility.

  • Replaces lower overload spring
  • More predictability and spring progression keeps tires planted
  • Includes U-Bolts and Center Pins
  • Provides 1" total lift
$505
2 of 2 options
Ram 3500 2013-2018 Dodge 4WD (Diesel Engines w/4" axle tube) 1" Full Progressive Rear Leaf Spring Kit by Carli Suspension

These Full Progressive Rear Leaf Springs are manufactured by Deaver Spring Mfg, in exclusive partnership with Carli Suspension. These springs represent a two-stage design, carefully balancing the truck's weight-carrying capacity while delivering a smooth and comfortable ride on city streets. They are engineered for optimal comfort, whether you're navigating urban roads or tackling off-road terrain.

  • Softens the initial spring rate at ride height
  • Reduces payload to "light" 3/4-ton capacity
  • Two-stage design for a balance of weight capacity and comfort
  • Deaver Spring Mfg partners exclusively with Carli Suspension
  • Includes: driver and passenger rear leaf springs along with ubolts with hardware
  • Suitable for Daily Drivers and Weekend Warriors, perfect for work and play
Read More

These Full Progressive Rear Leaf Springs are manufactured by Deaver Spring Mfg, in exclusive partnership with Carli Suspension. These springs represent a two-stage design, carefully balancing the truck's weight-carrying capacity while delivering a smooth and comfortable ride on city streets. They are engineered for optimal comfort, whether you're navigating urban roads or tackling off-road terrain.

  • Softens the initial spring rate at ride height
  • Reduces payload to "light" 3/4-ton capacity
  • Two-stage design for a balance of weight capacity and comfort
  • Deaver Spring Mfg partners exclusively with Carli Suspension
  • Includes: driver and passenger rear leaf springs along with ubolts with hardware
  • Suitable for Daily Drivers and Weekend Warriors, perfect for work and play
$1455
Leaf Spring Shackle
Ram 3500 2013-2024 Dodge 4WD Fabricated Rear Leaf Spring Shackle Kit by Carli Suspension

The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

  • Greasable and Rebuildable
  • Far Better Ride than Factory Shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
Read More

The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

  • Greasable and Rebuildable
  • Far Better Ride than Factory Shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
$275
Long Travel Air Bags
Ram 3500 2013-2018 Dodge 4WD (w/1-2" rear lift & 4" rear axle) Long Travel Air Spring System by Carli Suspension

Restores Factory capacity to reduced rate Carli Progressive Leaf Springs. Provides the best of both ends of the spectrum - ride on Carli's soft-rate leaf springs when unloaded then air the bags up to level the chassis and support your load!

  • Restore Factory Payload to Carli Full Progressive Springs
  • Supports up to 12 inches of travel
  • Compatible with 1"-2" Rear Lift
  • Includes 1/4" Airline, Fittings and Schrader Valves
  • Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
Read More

Restores Factory capacity to reduced rate Carli Progressive Leaf Springs. Provides the best of both ends of the spectrum - ride on Carli's soft-rate leaf springs when unloaded then air the bags up to level the chassis and support your load!

  • Restore Factory Payload to Carli Full Progressive Springs
  • Supports up to 12 inches of travel
  • Compatible with 1"-2" Rear Lift
  • Includes 1/4" Airline, Fittings and Schrader Valves
  • Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
$1210
Low-Mount Steering Stabilizer
Ram 3500 2013-2024 Dodge 4WD Low Mount Steering Stabilizer by Carli Suspension

This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.

  • Direct bolt-in replacement
  • Corrects left tire pull, adjustable
Read More

This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.

  • Direct bolt-in replacement
  • Corrects left tire pull, adjustable
$355
High-Mount Steering Stabilizer
Ram 3500 2013-2018 Dodge 4WD High Mount Steering Stabilizer by Carli Suspension

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.

  • Simple, Bolt-in Installation
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.

  • Simple, Bolt-in Installation
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
$550
Radius Arms
Ram 3500 2013-2024 Dodge 4WD (w/3.25" of lift) Fabricated Radius Arm System by Carli Suspension

These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.

  • Massive Strength Upgrade vs. Stock Arm
  • Improved ride quality and control
  • Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
  • 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
Read More

These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.

  • Massive Strength Upgrade vs. Stock Arm
  • Improved ride quality and control
  • Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
  • 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
$1750
Front Differential Guard
Ram 3500 2013-2024 Dodge 4WD Front Differential Guard by Carli Suspension

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
Read More

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
$235
Heavy Duty Ball Joints
Ram 3500 2013-2024 Dodge 4WD Extreme Duty Upper & Lower Ball Joints by Carli Suspension

These ultra heavy duty ball joints could be last you will need to purchase for your truck. They are that good.

  • Set of Upper and Lower Ball Joints
  • LIFETIME Advanced-Replacement Warranty
  • Copper Plated, Carburized and Dry-Lubed
  • Includes a tube of Redline CV2 Grease
Read More

These ultra heavy duty ball joints could be last you will need to purchase for your truck. They are that good.

  • Set of Upper and Lower Ball Joints
  • LIFETIME Advanced-Replacement Warranty
  • Copper Plated, Carburized and Dry-Lubed
  • Includes a tube of Redline CV2 Grease
$940
Vehicle Fitment
MakeDodge
ModelRam 3500
Year Fitment2018, 2017, 2016, 2015, 2014, 2013
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-D3-BC-CS-1319-D
Item Numbercar_cs-d3-bc-cs-1319-d
MPN(UPC)883584152132
Product LineLift Kits
Lift Height3.5 inch
