3.5" 2013-2018 Dodge Ram 3500 4wd (w/Diesel Engine) Commuter Lift System by Carli Suspension

This Carli Suspension CS-D3-COM-CS-1319-D Commuter 3.5-inch lift system for the Dodge Ram 3500 4WD diesel models is a premium lift kit that will lift your vehicle enough to fit up to 37-inch x 12.5-inch tires. It is perfect for Ram owners who want the best on-road ride quality and are not planning on much off-roading.

This lift kit system features 3.5-inch lift front coil springs with a slightly reduced linear rate for improved ride comfort. Paired with the coil springs are Carli SPEC 2.0 shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and excellent heat dispersion. An internal reservoir with a 5/8-inch diameter, hardened steel, chrome-plated shaft is also featured.

To keep the front axle appropriately centered, an adjustable front track bar is included. In typical Carli fashion, this bar features elements not found in other track bars. This includes 3/8 inch DOM construction that allows for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Radius arm drop brackets lower the factory radius arms, allowing them to rotate the axle back to its original angles to maintain proper caster and geometry. Made from 1/4-inch cold-rolled steel, these heavy-duty brackets provide a solid link between the arms and chassis.

In the rear, Carli offers a variety of choices for lifting or not lifting the rear of the vehicle. The base kit does not lift the rear; however, for a level ride, you will want to choose between the Carli progressive rate 2" lift add-a-pack kit (the most economical option, which maintains the factory payload) or the Carli progressive rate 2" lift leaf springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality, while reducing load capacity to a 3/4-ton specification. You can make your selection in the options section below.

Features & Benefits:

• 3.25 to 3.5 inch front lift (depending on cab configuration) / 0 to 2.5 inch rear lift
• Premium lift kit optimized for on-road ride quality
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli SPEC 2.0 IFP Front and Rear Shocks - 2" diameter aluminum body with internal reservoir
• Shocks are fully serviceable and rebuildable
• Designed to enhance the quality of the ride for on-road use greatly
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Radius arm drop brackets keep the proper front caster
• Rear lift is optional, but Carli progressive 2" lift leaf springs are highly recommended for ride quality and a level ride (see options above)
• Front Travel = 9.5" / Rear Travel = 11.3" (50% more suspension travel than stock)
• Lifetime warranty on components, 1-year warranty on shocks
• Allows use of up to 37-inch x 12.5 tires

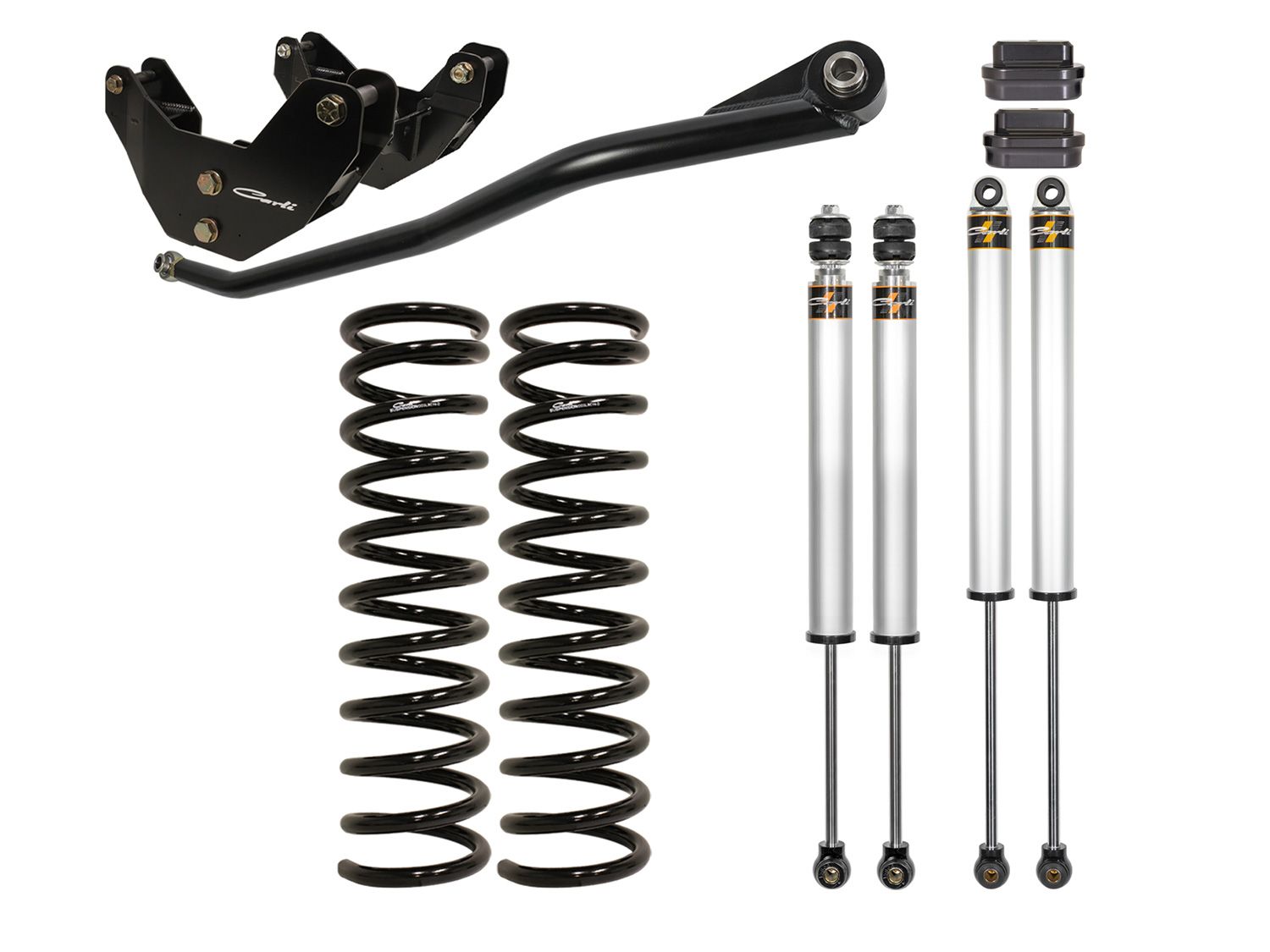

Components Included:

• CS-DFBD-1: Front Bump Stop Drops
• CS-DLRC-14-D: Front Liner-Rate Coil Springs
• CS-DATB-1419: Adjustable Track Bar
• CS-DRAD-14: Radius Arm Drop Brackets
• CS-DCM-20-HK: Transmission Crossmember, extended hardware
• AS-D3SPKG-CS201FP-A: Carli SPEC 2.0 IFP Shocks, Front and Rear

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in options section above.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The billet aluminum drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.
