2.5" 2013-2018 Dodge Ram 3500 4wd (w/Diesel Engine) Pintop Leveling System by Carli Suspension

This Carli Suspension CS-DPT25-LVL-13-D Pintop 2.5-inch front leveling system for the Dodge Ram 3500 4WD diesel models is the ultimate performance leveling kit to get your truck sitting level with the rear. Designed to improve significantly ride quality in on-road conditions and while supremely enhancing off-road performance with the use of custom-tuned King 2.5" Remote Reservoir Shocks.

This leveling system features 2.5-inch lift front coil springs with a slightly reduced linear rate for improved ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5-inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle appropriately centered, an adjustable front track bar is included. In typical Carli fashion, this bar features elements not found in other track bars. This includes 3/8 inch DOM construction that allows for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Features & Benefits:

• 2.5 inch front lift / 0 inch rear lift
• Ultimate Performance Leveling Kit on the market today
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Designed to improve ride quality for on-road, highway, towing/hauling and slow to high speed off-road
• Adjustable Track Bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Front Travel = 9" / Rear Travel = 11"
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires

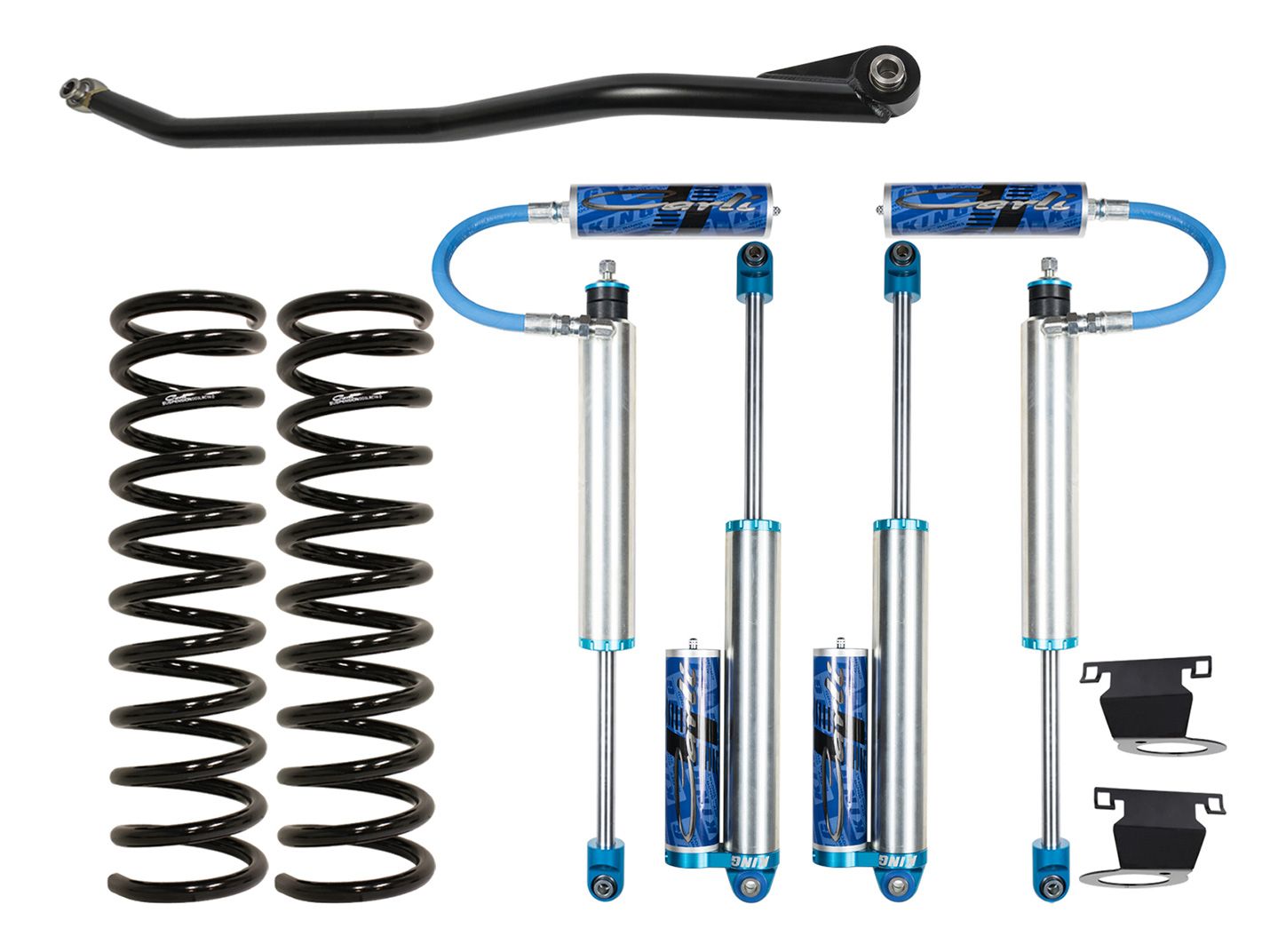

Components Included:

• CS-DLRC-14-LVL-D: Front Coil Springs
• CS-DPT25SPKG-LVL-13-D: Carli Tuned King 2.5 Remote Resi Front & Rear Shocks, with Resi Mounts and Brakeline Tabs
• CS-DATB-1419: Adjustable Track Bar

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.
