3" 2010-2013 Dodge Ram 2500 4wd (w/Hemi Engine) Pintop Lift System by Carli Suspension

This Carli Suspension CS-DPT25-03-H 3-inch Pintop lift system for the Dodge Ram 2500 4WD Hemi models is an ultra-premium lift kit that will lift your vehicle enough to fit up to 37-inch x 12.5-inch tires. Using custom-tuned King 2.5" Remote Reservoir Shocks, this kit is perfect for Ram owners wanting the best ride quality and off-roading performance. Excellent during on-road, highway, towing/hauling, along with slow to high speed off-road use.

This lift system features 3-inch lift front coil springs with a slightly reduced linear rate for improved ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5-inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle appropriately centered, an adjustable front track bar is included. In typical Carli fashion, this bar features elements not found in other track bars. This includes 3/8 inch DOM construction that allows for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear, Carli offers a variety of choices for lifting or not lifting the rear of the vehicle. The base kit does not lift the rear, however, for a level ride, you will want to choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload) or the Carli progressive rate 1" lift leaf springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality, while reducing load capacity to a 3/4-ton specification. You can make your selection in the options section below.

Features & Benefits:

• 3-inch front lift / 0 to 1-inch rear lift (optional rear lift)
• Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing, and slow to high speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Shocks are fully serviceable and rebuildable
• Rear lift is optional, but Carli progressive 1" lift leaf springs are highly recommended for ride quality and a level ride (see options above)
• Designed to greatly improve ride quality for on-road use
• Front Travel = 10" / Rear Travel = 10.6"
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 37 inch x 12.5 tires

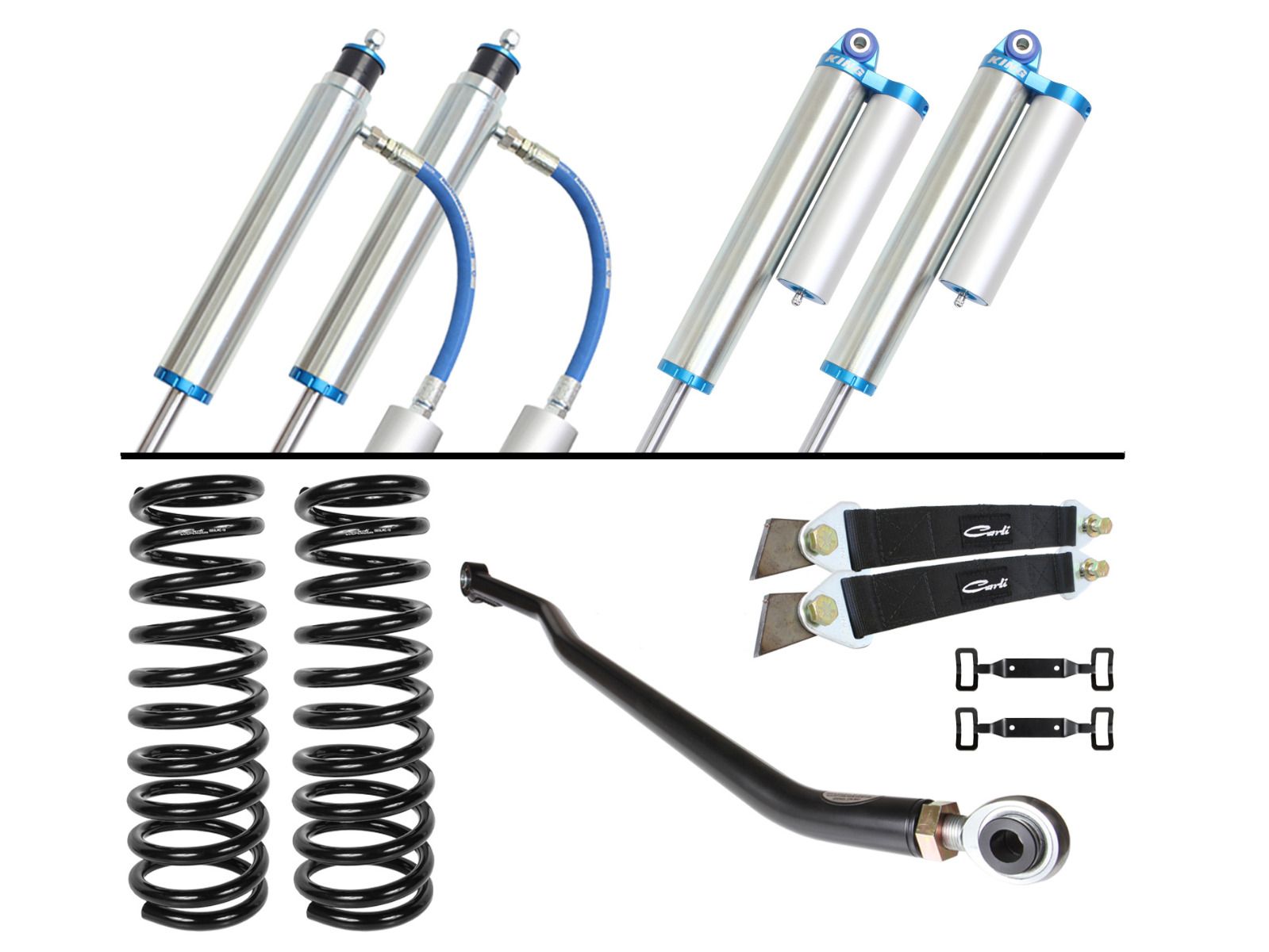

Components Included:

• CS-DMRC-03-H: Front Coil Springs
• CS-DPT25SPKG-03-H: Carli Tuned King 2.5" Remote Resi Front and Rear Shocks, Resi Mounts and Limiting Straps
• CS-DATB-03: Adjustable Track Bar

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.
