3.25" 2019-2025 Dodge Ram 2500 4wd (w/Diesel Engine & Factory Rear Air Suspension) Pintop Lift System by Carli Suspension

This Carli Suspension CS-DPT25-1419-D-AR Pintop 3.25 inch lift system for the Dodge Ram 2500 4wd diesel models with factory rear air suspension is a ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. Using custom tuned King 2.5" Remote Reservoir Shocks this kit is perfect for Ram owners wanting the best ride quality and off-roading performance. Excellent during on-road, highway, towing/hauling along with slow to high speed off road use.

Featured in this lift kit system are 3.25 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Radius arm drop brackets lower the factory radius arms which rotates the axle back to factory angles to maintain proper caster and geometry. Made from 1/4 inch cold rolled steel these heavy duty brackets will provide a solid link between the arms and chassis.

In the rear Carli uses a 2 inch spacer for the factory air bags made of heavy gauge steel. Fabricated rear bump stop spacers are included to drop the factory stops 2 inches. Also included are extended machined sensor links for the factory air bags to continue to function properly, extended sway bar endlinks to eliminate binding and a rear track bar bracket to keep the axle centered.

Rear Track Bar: As the Ram 2500’s suspension cycles, the rear axle naturally shifts side-to-side, creating rear yaw that can be felt in the cab. To correct this, Carli offers two solutions: a rear track bar drop bracket that minimizes axle movement while retaining the factory-length bar, or the Carli Extended Rear Track Bar, which dramatically increases track bar length and improves geometry. The result is reduced yaw, improved stability, and far more predictable handling on and off the road.

Features & Benefits:

• 3.25 inch front lift / 2 inch rear lift
• Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing and slow to high speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Radius arm drop brackets keep proper front caster
• Rear heavy gauge steel spacers lift the rear air bags
• Factory air suspension keeps full functionality
• Front Travel = 9.6" / Rear Travel = 9" (50% more suspension travel than stock)
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 37 inch x 12.5 tires

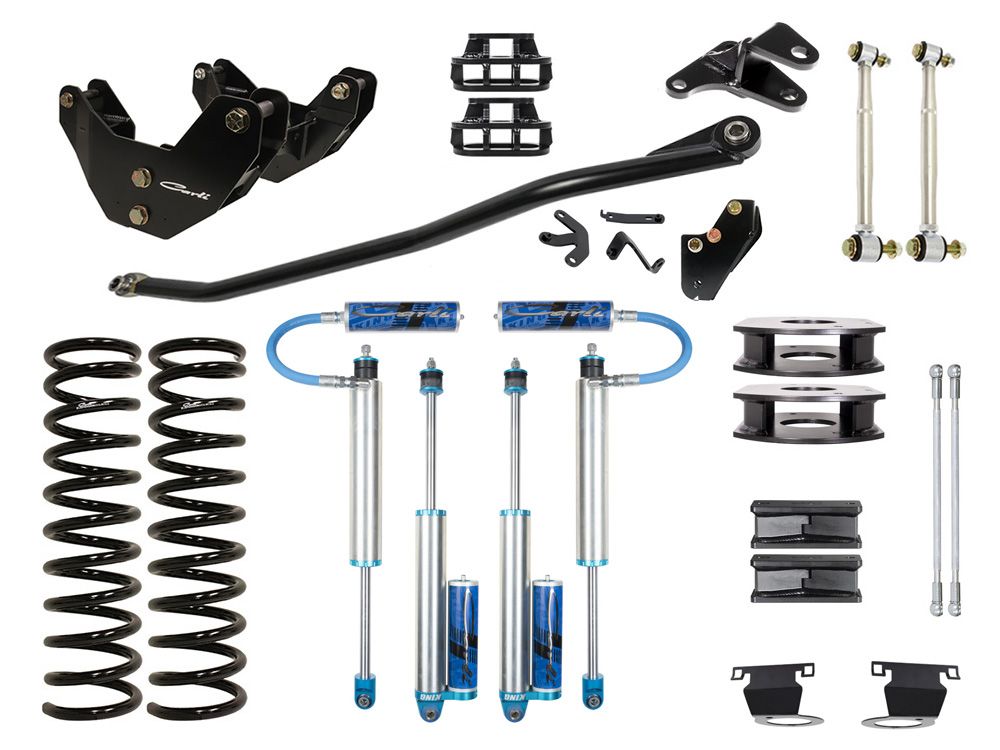

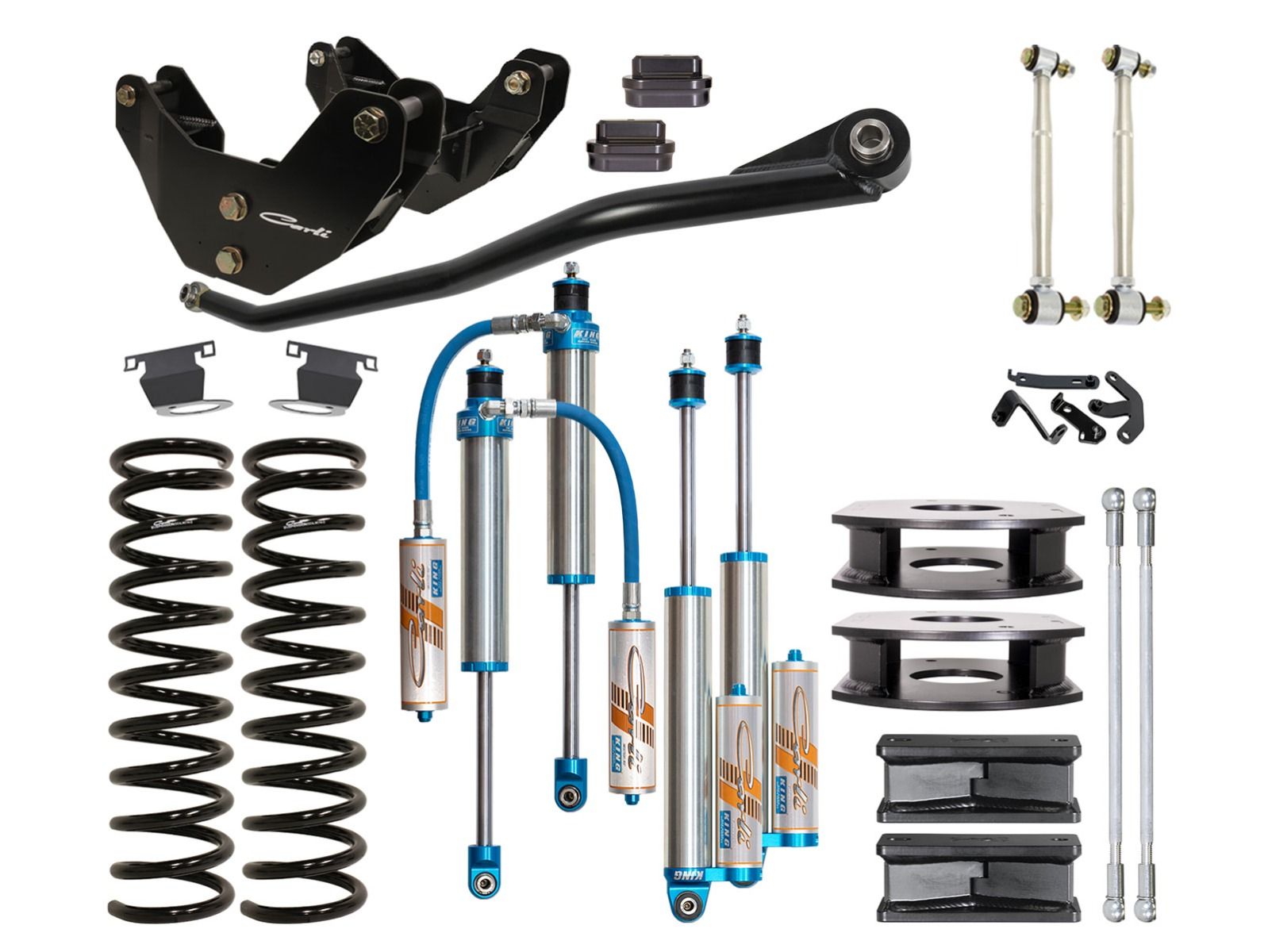

Components Included:

• CS-DLRC-14-D: Front Liner-Rate Coil Springs
• CS-DPT25SPKG-14-D-AR: Carli Tuned King 2.5 Shocks - Front and Rear, Brake Line Tabs, Reservoir Mounts
• CS-DATB-1419: Adjustable Track Bar w/stabilizer bracket
• CS-DRAD-14: Radius Arm Drops
• CS-DFBD-1: Front Bump Stop Drops
• CS-DCM-20-HK: Transmission Crossmember w/hardware
• CS-DEL-R-14: Rear Sway Bar End Links
• CS-DAR-14-BLOCK: Rear Airbag Spacers
• CS-DRBD-2.5: Rear Bump Stop Drop Kit
• CS-DAR-14-LINK: Extended Sensor Link

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The billet aluminum drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.
