2.5" 2019-2025 Dodge Ram 2500 4wd (w/Diesel Engine & Factory Rear Air Suspension) Pintop Leveling System by Carli Suspension

This Carli Suspension CS-DPT25-LVL-1419-D-AR Pintop 2.5 inch front leveling system for the Dodge Ram 2500 4wd diesel models with factory rear air suspension is the ultimate performance leveling kit to get your truck sitting level with the rear. Designed to greatly improve ride quality in on-road conditions and while supremely enhancing off-road performance with the use of custom tuned King 2.5" Remote Reservoir Shocks.

Featured in this leveling system are 2.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear Carli uses a 1 inch spacer for the factory air bags. The 2 piece design allows for a seamless install. Fabricated rear bump stop spacers are included to drop the factory stops 1 inch. Also included are extended machined sensor links.

Features & Benefits:

• 2.5 inch front lift / 1 inch rear lift
• Ultimate Performance Leveling Kit on the market today
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Designed to improve ride quality for on-road, highway, towing/hauling and slow to high speed off-road
• Adjustable Track Bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Rear 1 inch steel air bag spacers use 2-piece design for simple install
• Front Travel = 9" / Rear Travel = 9"
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires

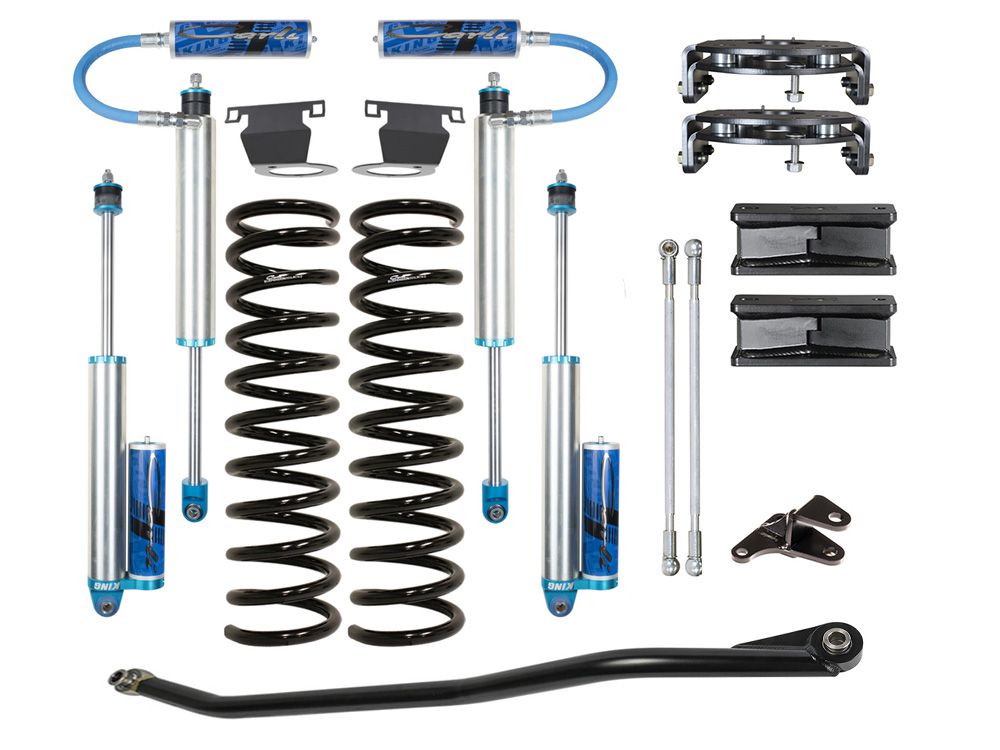

Components Included:

• CS-DLRC-14-LVL-D: Front Coil Springs
• CS-DPT25SPKG-LVL-14-D-AR: Carli Tuned King 2.5 Remote Resi Front & Rear Shocks, with Resi Mounts and Brakeline Tabs
• CS-DATB-1419: Adjustable Track Bar
• CS-DAR-14-LVL-BLOCK: Factory Air Bag Spacer
• CS-DRBD-1.875: Rear Bump Stop Spacer
• CS-DAR-14-LVL-LINK: Extended Rear Senor Link

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in the options section above.
