6" 2003-2009 Dodge Ram 2500 4wd (w/Diesel Engine & T-Style Steering) Pintop Lift System by Carli Suspension

The Carli Suspension CS-DPT25-6-03 6-inch Pintop lift system for Dodge Ram 2500 4WD diesel models is an ultra-premium lift kit that will lift your vehicle enough to accommodate up to 37-inch x 13.5-inch tires. Using custom-tuned King 2.5" Remote Reservoir Shocks, this kit is perfect for Ram owners wanting the best ride quality and off-roading performance. Excellent during on-road, highway, towing/hauling, along with slow to high speed off-road use.

This suspension system features a radius arm conversion kit. This removes the factory 4-link control arms and replaces them with longer, flatter links that cycle a more linear travel for superior ride quality and handling. The Carli radius arms will allow the axle to roll while not binding during suspension articulation. Mounting of the radius arms and brackets requires no modification to the factory mounts (can be returned to stock). The arms themselves are of extreme duty, utilizing a gusseted, clam-shell structure with internal X-bracing and featuring 3-inch Currie Johnny Joints.

Also included in this lift system are 6-inch lift front coil springs, which have a slightly reduced linear rate for improved ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5-inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle appropriately centered, an adjustable front track bar is included along with a drop bracket. In typical Carli fashion, this bar features elements not found in other track bars. This includes 3/8 inch DOM construction that allows for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear, Carli gives you a few choices. The base kit does not include a rear lift, but for a complete kit, you will want to select between an add-a-pack with a block kit or Carli's excellent Full Progressive Leaf Springs. You can make your selection in the options section below.

Features & Benefits:

• 6-inch front lift / 0 to 4-inch rear lift (rear lift sold as an option, but required for a complete kit)
• Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing, and slow to high speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Shocks are fully serviceable and rebuildable
• Rear lift options, add-a-pack with a block kit, or Carli's awesome Full Progressive Leaf Springs (see in options above)
• Radius Arm Conversion Kit greatly improves handling and articulation
• Heavy Duty Radius arms use heavy gauge steel and are gusseted with clam-shell structure and internal X bracing, use 3-inch Currie Johnny Joints
• Front Travel = 12.5" / Rear Travel = 13.9" (w/rear springs upgrade)
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Lifetime warranty on components, 1-year warranty on shocks
• Allows use of up to 37-inch x 13.5 tires

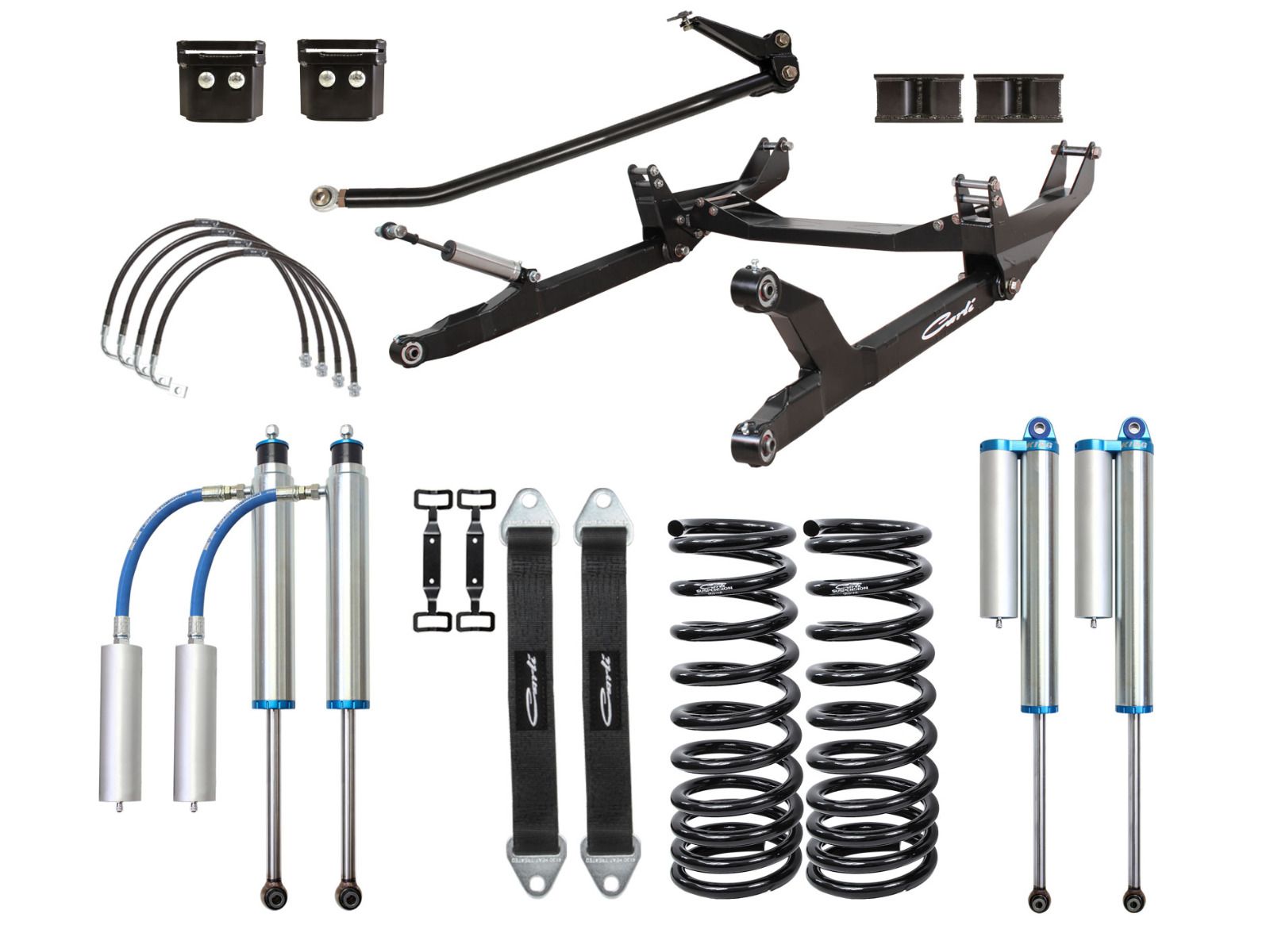

Components Included:

• CS-DMRC6-03-D: Front Coil Springs
• CS-DATB-03: Adjustable track bar
• CS-DPRBDROP-6: Track bar drop bracket
• CS-DRA6-03-S: Radius Arm System with Crossmember
• CS-DPT25SPKG-03-6-D: Carli Tuned King 2.5 Remote Resi Front and Rear Shocks, Resi Mounts and Limiting Straps
• CS-DRBD-6: Rear Bump Stop Drop
• CS-DFBD-6: Front Bump Stop Drop
• CS-D6BBL-03: Braided Front and Rear Brake Lines

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in options section above.
