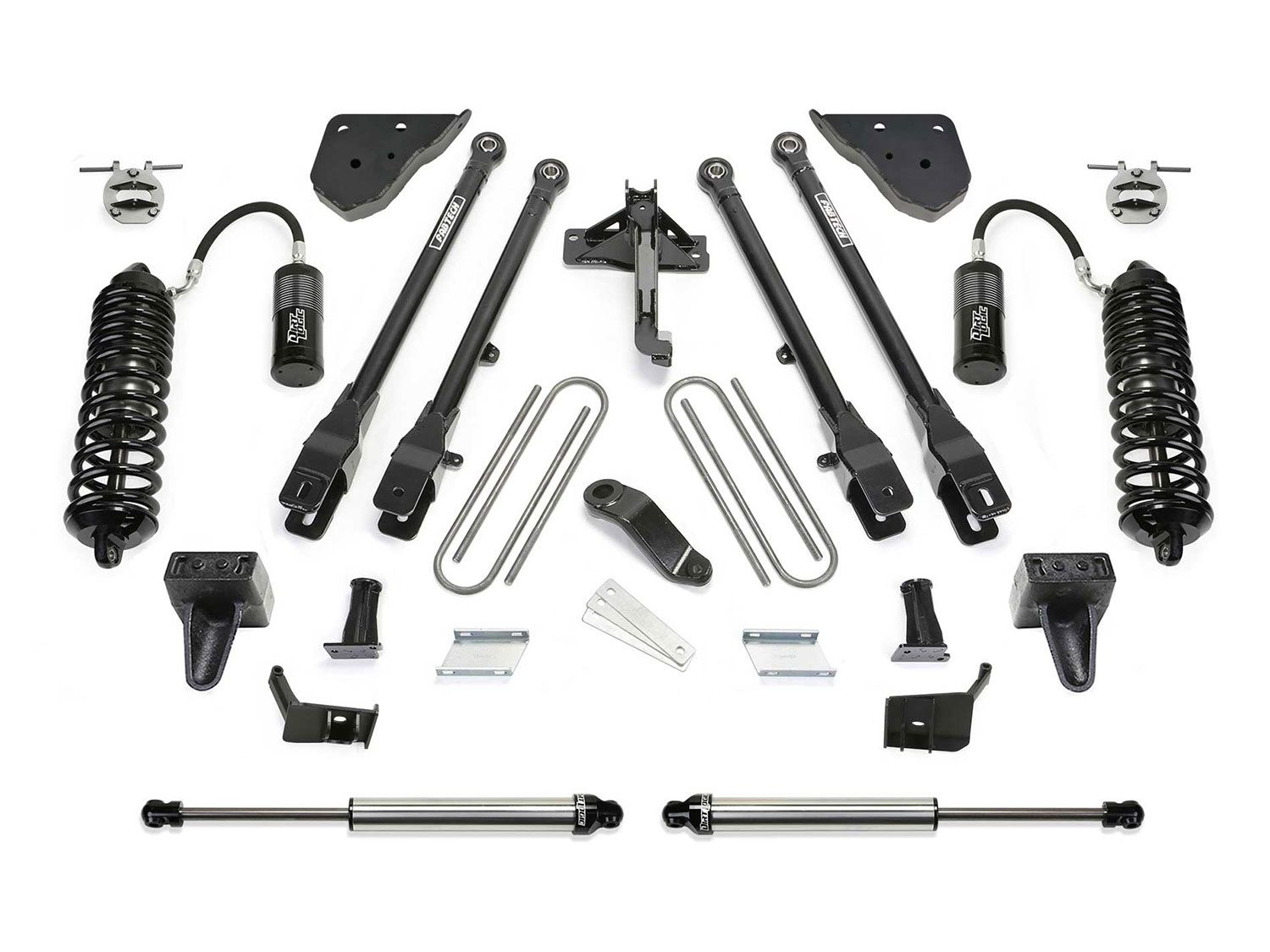

4" 2023-2026 Ford F250 / F350 (Diesel engine) 4WD 4-Link Lift Kit w/Dirt Logic 4.0 Reservoir Coilovers by Fabtech

Fabtech’s K2411DL 4-Link Lift Kit for the Ford F250 / F350 Super Duty is expertly engineered to enhance on-road performance while conquering the most demanding off-road challenges. This premium system replaces the factory radius arm suspension with a complete bolt-on 4-link conversion, providing unmatched stability and control on and off the road.

The 4 Link design minimizes caster change throughout the suspension travel, improving on-road handling and steering precision. Off-road, it offers superior articulation compared to the radius arm setup, enabling smoother navigation over uneven terrain at any speed. This advanced lift kit features front Dirt Logic 4.0 remote reservoir coilovers for the ultimate performance. The massive 4" diameter stainless steel coilovers, with a 1.25" NitroSteel® piston rod, provide maximum durability and corrosion resistance, even in extreme conditions. The coilovers add 2" of additional wheel travel, ensuring enhanced suspension performance and handling under heavy loads or aggressive driving. A remote aluminum reservoir helps dissipate heat, delivering consistent damping during high-speed off-road driving.

In addition to the front coilovers, the kit includes billet sway bar links, a track bar relocation bracket, a pitman arm, and more. The rear lift is achieved using a block and U-bolt kit to ensure a balanced suspension. Fabtech’s 4 Link system has been tested and proven over more than ten years in military applications, making it one of the most reliable and durable Super Duty suspension systems on the market. Each component is expertly crafted in-house for superior quality, and a 5-year, 60,000-mile powertrain warranty backs the entire system.

Features and Benefits:

• Bolt-on 4 Link system replaces factory radius arms for improved stability and handling
• Dirt Logic 4.0 remote reservoir coilovers with 4" diameter stainless steel body for superior performance
• 1.25" NitroSteel® piston rod for maximum corrosion resistance and durability
• Coil springs provide 2" of increased wheel travel for better suspension articulation
• Remote aluminum reservoir for heat dissipation and consistent damping in extreme conditions
• Includes billet sway bar links, track bar relocation bracket, pitman arm, and more
• Rear lift achieved with block and U-bolt kit for balanced suspension
• Proven reliability in over 10 years of military applications
• Backed by a 5-year, 60,000-mile powertrain warranty
• High-quality components designed and manufactured in-house for exceptional performance and durability
