Ford Bilstein Truck / Offroad Shocks

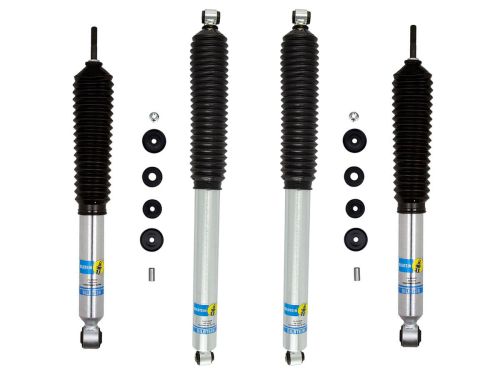

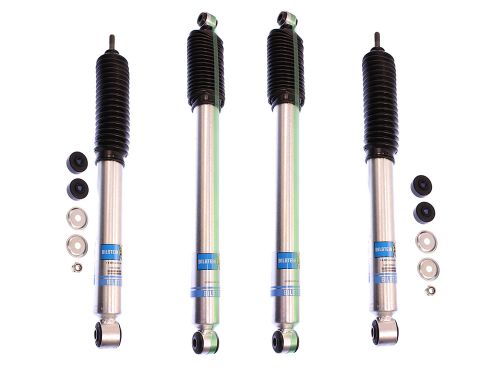

The 5100 Series shocks are high-performance monotube shock absorbers for trucks, SUVs, and off-road vehicles. Renowned for their durability and superior handling, these Bilstein 5100 Series feature a specialized piston design and high-quality components, providing increased damping ability and improved ride comfort on and off the road. Available in extended lengths for most popular models with suspension lift kits.

• 2" Steel Body - Zinc Plated Finish
• 46 mm Piston
• Available for lifted models
• Good balance of off-road performance and ride comfort

The 5160 series shocks are nearly identical to the 5100 series shocks but include a remote reservoir. These reservoirs will increase the shock oil capacity for even more excellent heat dissipation and damping sensitivity. The Bilstein 5160 shock is best suited for drivers who frequently leave the pavement.

• Remote Reservoirs for added fluid capacity
• 46 mm Piston
• Available for lifted models
• Ideal for frequent off-road excursions

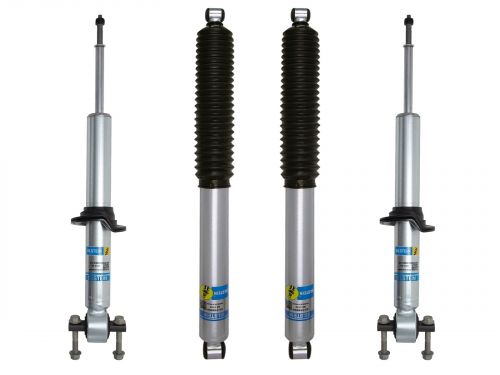

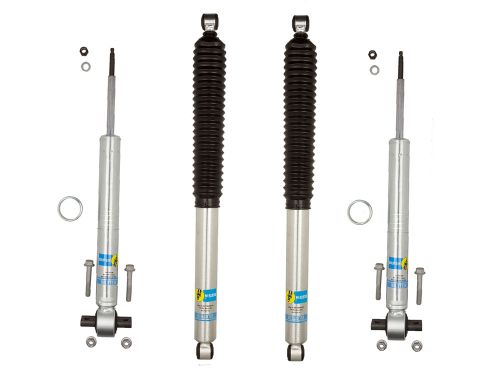

Available for models equipped with front coil-over design suspension (most midsize & 1/2 ton trucks). The Bilstein 5100 adjustable height shocks /strut include all the great features of the standard 5100 shocks but are also designed to increase the riding height. The 5100 adjustable shock features a snap-ring design that allows the factory coil spring seat to be positioned in different locations, giving the customer a choice of height adjustments (usually 0 to 2.5 inches).

• Designed for models with front coilover suspension
• Adjustable lift height of usually 0 to 2.5 inches
• Uses factory coil springs

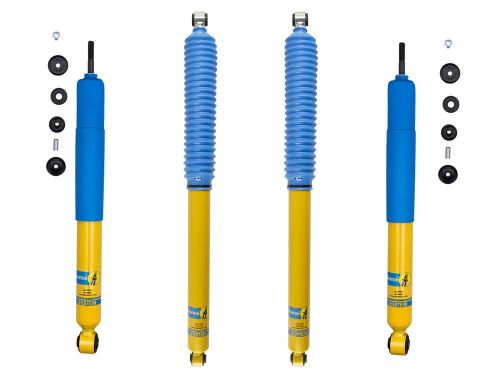

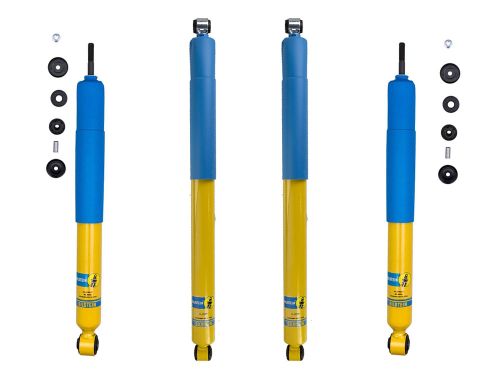

The 4600 series shocks are engineered monotube shock absorbers primarily designed for trucks, SUVs, and Jeep models. These shocks offer an enhanced level of handling control and comfort compared to stock shocks. The Bilstein 4600 are easily recognizable with their distinct yellow powder coat finish and blue boot. It's an excellent option for stock-height models.

• Heavy-Duty Monotube Gas Design
• Distinct yellow powder coat finish
• Great for stock height models (not available for lifted models)
• Excellent all-around shock for highway, towing & some off-roading

While similar to the 5100 adjustable shocks, the Bilstein 6112 is designed for drivers that demand more off-road performance. Featuring a sizeable 2.65-inch body and 60mm piston, these coilovers can handle a lot of abuse. Unlike the 5100 series, the 6112 includes new heavy-duty coil springs. These shocks also give you the ability to adjust the ride height.

• Huge 60mm piston & 2.65-inch body w/zinc plated finish
• Adjustable ride height
• Includes new coil springs
• Designed for more frequent off-roading

The 8100 Series shocks are a premium high-end upgrade designed for those serious about going off-road. Featuring a large 60mm body made from billet aluminum, these shocks disperse heat quickly and effectively. A remote reservoir, which increases oil capacity, is standard. An optional internal bypass design allows for incremental changes for rebound and compression.

• Aluminum 60mm Body
• Designed for hardcore off-roaders
• Optional internal bypass
• External reservoir

The new TerraSport B8 line of shocks is designed for the CUV (crossover utility vehicles) market as a suspension upgrade and a lift kit. These strut assemblies and shocks provide excellent handling, control, and comfort for both on-road and light off-road driving conditions. The Bilstein TerraSport employs an extended body design, altering the spring seat positioning. This action effectively raises the original equipment manufacturer (OEM) springs, delivering extra lift by pushing them upward to provide 1 to 2 inches of suspension lift, depending on the model.

• Designed for CUVs (crossover utility vehicles) only
• Provides 1 to 2 inches of lift
• Improves handling and control

Compare Bilstein Shock Series

Bilstein offers several shock absorber series designed for everything from stock-height daily drivers to lifted trucks and high-performance off-road vehicles. Use the comparison below to find the Bilstein shock series that best matches your suspension and how you use your vehicle.
