7" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by Zone Brand: Zone | SKU: F127 / F128
$1261.19
- +
1261.19

7" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by Zone

Brand: Zone | SKU: F127 / F128
From $1,261.19

7" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by Zone

Brand: Zone | SKU: F127 / F128
From $1,261.19


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

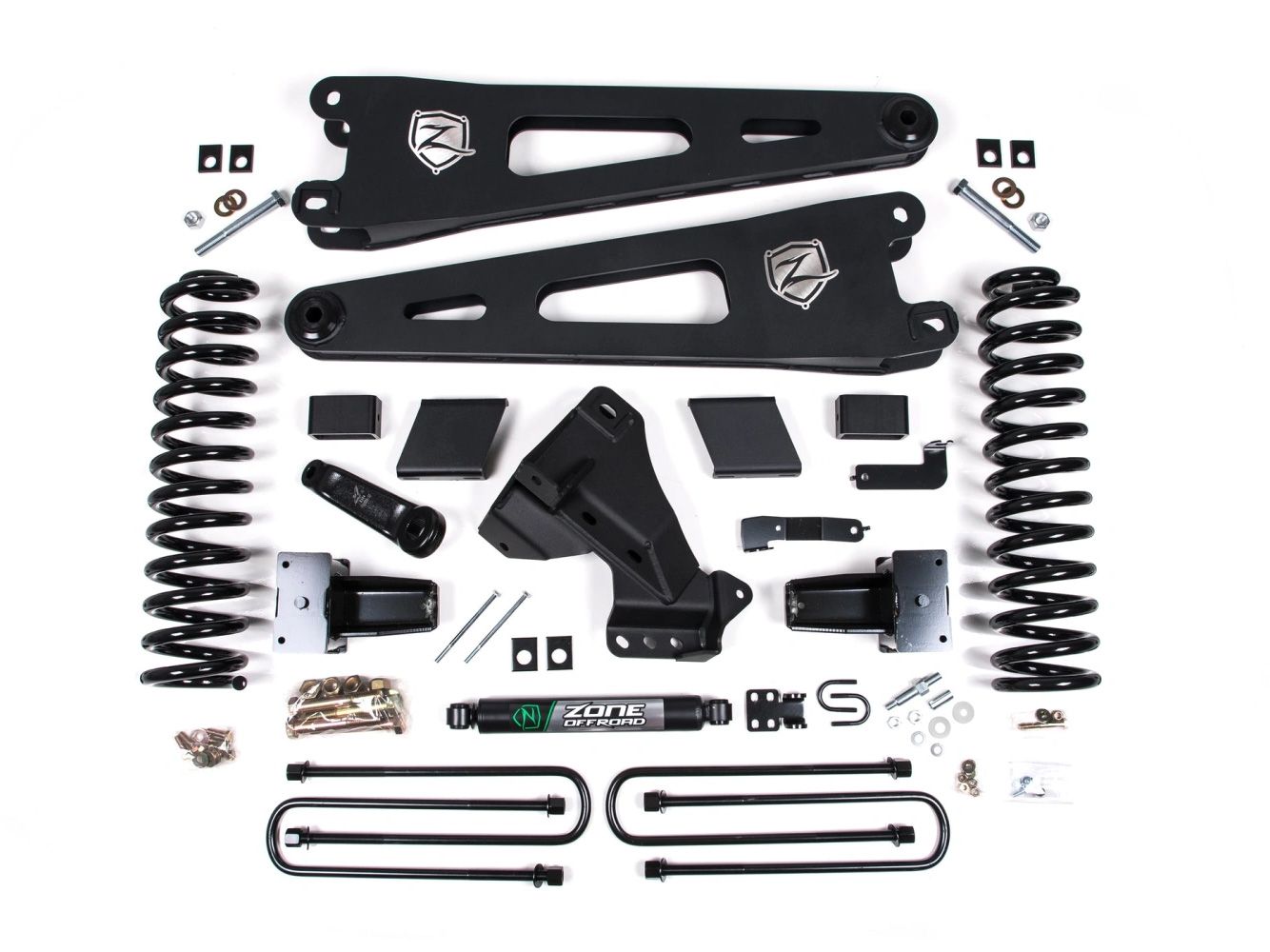

This Zone Off-Road F127 / F128 7-inch radius arm lift kit for the Ford F250/F350 Super Duty 4wd models will give your vehicle a great new look with the ability to fit up to 37-inch tires once installed. Radius Arms provide optimal strength, ground clearance, and looks while correcting front-end caster. Made out of 1/4" steel, the arms are boxed and fully welded, providing 2.5" greaseable bushings to isolate road vibration. Full-length coil springs pair perfectly with either Fox 2.0 Adventure series shocks or Zones standard shocks. Steering correction is handled by forged drop pitman arms, improving the operating angle while a massive track bar drop bracket is used to recenter the front end, keeping steering link angles optimal for predictable handling. Front sway bar relocation brackets, brake line drop brackets, bump stop extensions, and a single steering stabilizer are also included in this kit.

Top Features:

  • 7-inch lift / 4.5-inch rear lift
  • Heavy duty replacement radius arm provide better ground and tire clearance while correcting caster angles
  • Forged pitman arm to correct steering angles
  • Heavy-duty fabricated track bar relocation bracket to re-center the front axle
  • Full-length Diesel/Gas specific coil springs for a smooth ride
  • Choose between Zone Nitro Shocks or Fox Adventure Series Shocks
  • Allows for clearance for 37" tires
  • Includes factory protection plus program
  • Limited Lifetime Warranty
  • 5-year / 100,000 Mile Drivetrain Warranty
  • Install Time: 4-6 Hours

Warranty & Safety

Limited Lifetime Warranty—Zone Offroad Products are backed by a limited lifetime warranty. This warranty guarantees all products to be free from defects in material and workmanship to the original retail purchaser.

Important Notes
  • 37" tires may require minor trimming
  • Factory wheels fit when paired with factory tire size
  • Two piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  • Vehicle Fitment
    MakeFord
    ModelF250, F350
    Year Fitment2024, 2023
    2WD/4WD4WD
    Tech Specs
    ManufacturerZone
    Manufacturer Part NumberF127 / F128
    Item Numberzon_f127-f128
    Product LineLift Kits
    Lift Height7 inch
