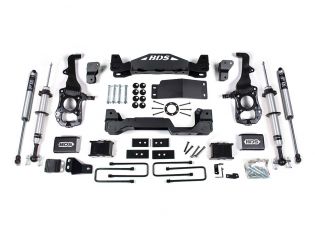

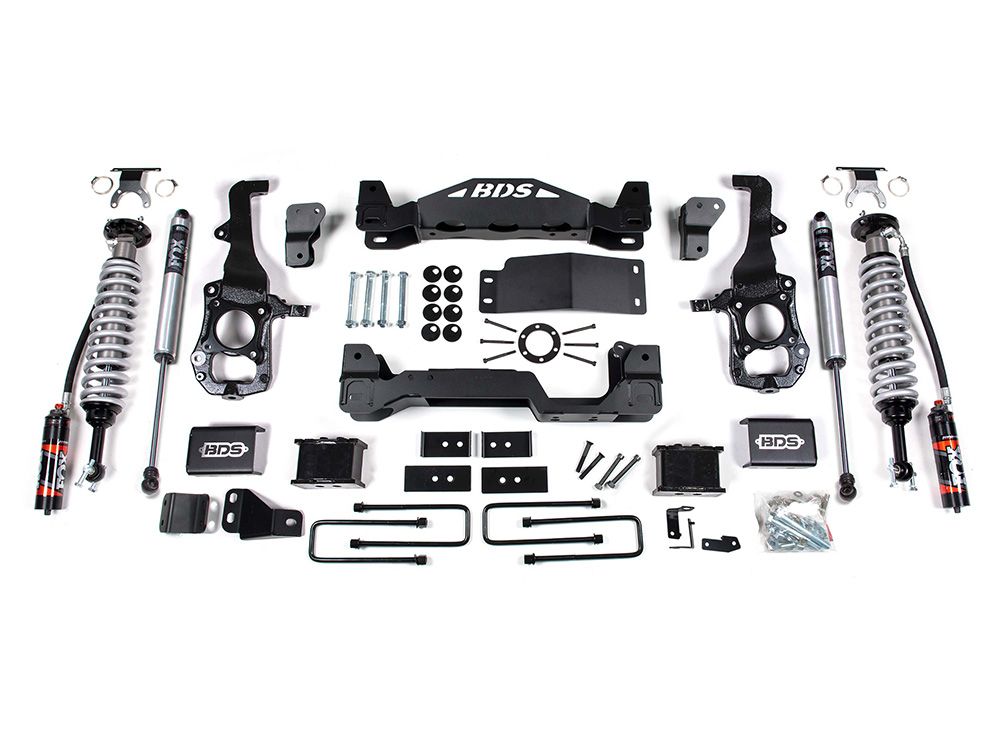

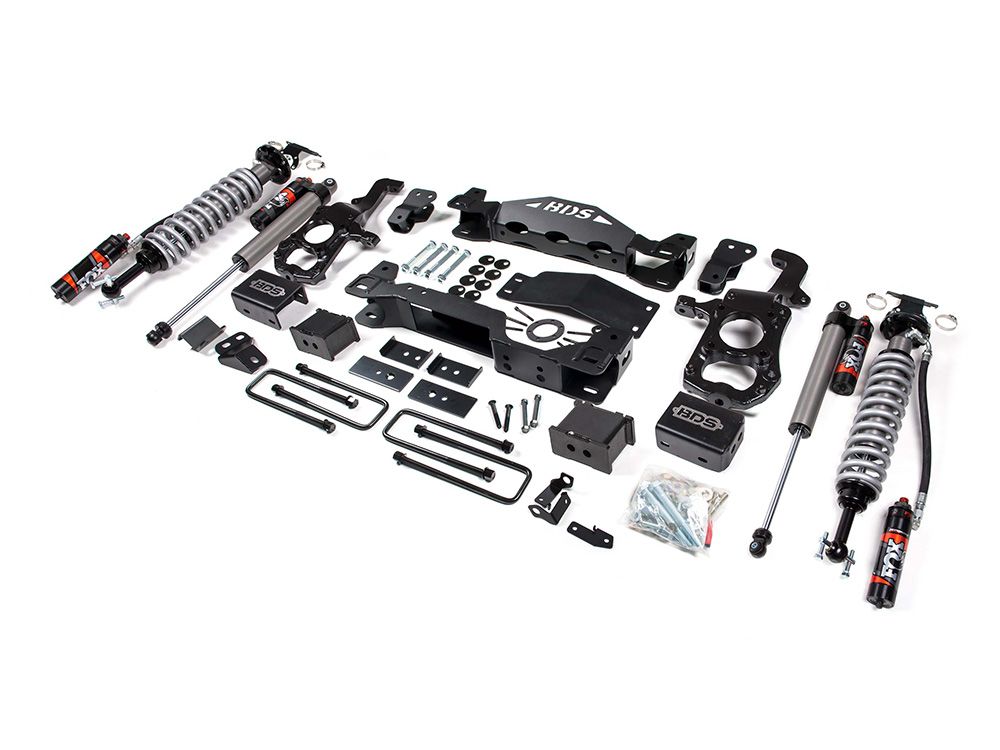

6" 2021-2023 Ford F150 4WD Fox Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1579FPE
As low as $4,104.70 Regular Price $4,400.60


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS 1579FPE 6 inch premium coil-over suspension lift kit for the Ford F150 truck will allow for fitment of up to 37 inch diameter tires for a great off-road look. Featuring Fox 2.5 Performance Elite remote reservoir coil-overs.  These Fox 2.5 Coil-overs will enhance ride quality and handling in both on-road and off-road conditions.

This lift kit also features 1/4 inch thick steel laser cut high clearance cross members that are designed to give maximum clearance and provide a rock solid mounting point for the factory lower control arms. A heavy duty front skid plates connects the cross members while protect steering and driveline components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility. CV axle angles are kept at a minimum using a front differential relocation system. The rear end is lifted using 5 inch or 4 inch tall axle blocks (replacing factory blocks) with extended U-bolts.

Features and benefits:

  • Fox 2.5 Performance Elite coil-overs w/remote reservoir
  • 1/4 Inch Steel High Clearance Cross members
  • Heavy Duty Front Skid Plate
  • High Clearance design max clearance
  • Rear block replaces factory block for level stance
  • Ductile Iron Heavy Duty Steering Knuckles
  • Front Differential Relocation System
  • Rear Fox 2.0 Performance shocks or upgrade to Fox Perfomrance Elite w/resi
  • Allows use of up 37 inch tires
  • Proudly made in the USA, using only premium quality components
  • Average Install Time: 8-10 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 37x12.50 w/20x8 tires and 5.5-5.75" back spacing
  • Fits 35x12.50 w/20x9 tires and 4.5-5.75" back spacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
  • 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire to frame crash bar clearance.
  • Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
  • Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
  • Does NOT fit diesel models.
  • Will not work with Tremor models.
  • Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
  • This system has not been tested on models equipped with Ford BlueCruise.
  • Will not work with models with CCD (Continuous Controlled Damping)
  • Vehicle Fitment
    MakeFord
    ModelF150
    Year Fitment2023, 2022, 2021
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1579FPE
    Item Numberbds_1579fpe
    Product LineLift Kits
    Lift Height6 inch
