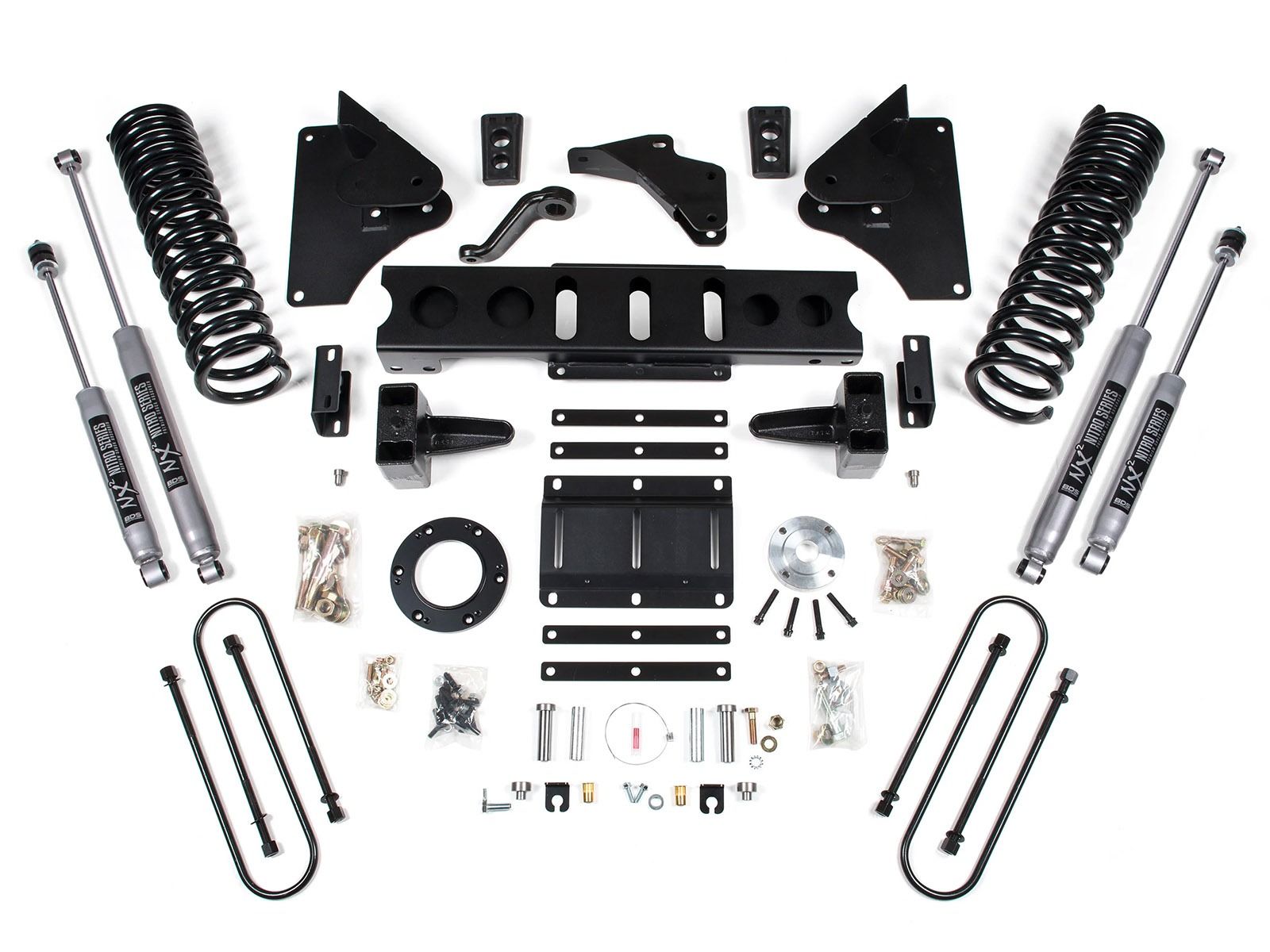

The BDS Suspension BDS1607H / BDS1607FS 5.5-inch lift kit for the 2013 through 2018 Dodge Ram 3500 is a great solution to fit larger-diameter tires and give your truck a great new look. In this kit, the radius arms are relocated with a uniquely designed bracket that mixes the ease of installation with an adapter-type bracket with the strength and durability of a full replacement radius arm mount bracket.

The new relocation bracket ties into the factory radius arm frame mount and the side of the frame rail. At the frame, the new mount is fastened with specially machined sleeves and threaded inserts. The threaded inserts (2) do require a minor amount of welding to provide the strongest possible connection. This installation portion can be completed without welding and then transported to a welding shop to be welded if necessary.

In addition to the radius arm relocation, the kit includes everything else to lift the Ram 3500s properly. Track bar relocation, dropped pitman arm and brake line relocation hardware position all the steering and brake components properly to work with the added ride height provided by the new progressive rate, full replacement coils springs. Extra design time was spent developing coils that would ride great, handle the rigors of supporting a 1-ton truck, and work properly with the unique factory coil mounts at the frame and axle.

The rear lift is accomplished with rear axle blocks and extended U-bolts.

Choose from BDS NX2 Nitro shocks or Fox 2.0 Performance Series shocks.

All possible SKUs based on options selected: BDS1607H BDS1607H BDS1607FS BDS1619H BDS1619FS BDS1781H BDS1781FS

Features and Benefits:

• 5.5-inch front lift / 4-inch rear lift
• Allows use of up to 37-inch diameter tires
• Heavy Duty Radius Arm Relocation Brackets
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation
• Average install time: 5 hours
• Choose from BDS NX2 or Fox 2.0 Performance IFS Shocks
• Made in the USA using Premium Components
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 13.5 inch tire w/ 17 x 9 and 5.625 inch backspacing
• Fits a 35 inch x 12.5 inch tire w/ 18 x 9 and 4.5 inch backspacing
• Fits a 35 inch x 12.5 inch tire w/ 17 x 9 and 4.5 inch backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
