5.5" 2013-2018 Dodge Ram 3500 4WD (w/gas engine) 4-Link Lift Kit by BDS Suspension

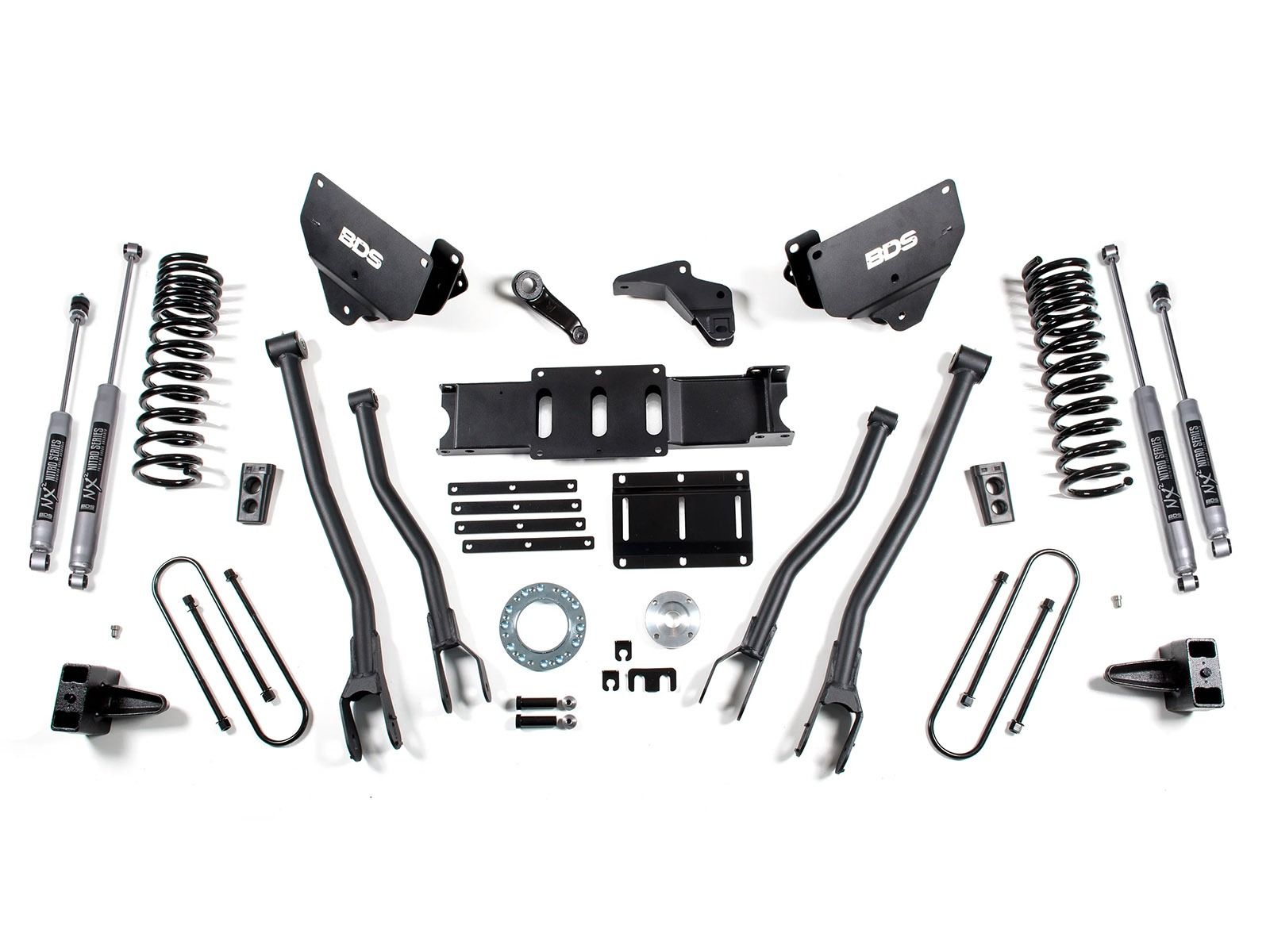

The BDS Suspension BDS1608H / 1608FS 5.5-inch 4-link lift kit for the 2013 through 2018 Dodge Ram 3500 is an excellent way to upgrade your suspension and fit up to 37-inch tires. The design for these kits starts with two massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets are located off of the factory radius arm brackets; no factory bracket removal is required.

The new 4-Link brackets mount similarly to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arm mounts. As with our radius arm brackets, there is a minor amount of welding required to install the threaded frame insert (1 per side). This insert is necessary to provide the strongest possible mount. The new control arm positions at the frame create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. This creates better handling and more controlled steering 'feel', especially in rough terrain when the suspension is allowed to travel and articulate. The large diameter, heavy-wall tubular control arms are formed for tire clearance when turning and position the axle slightly forward from stock to create more clearance to the rear portion of the front fenders.

The new front coil springs are progressive rate in order to provide excellent on-road ride and off-road performance. Track bar relocation, a dropped pitman arm, and brake line relocation round out the front portion of the system.

Choose from Fox 2.0 Performance IFP Shocks (2-inch diameter aluminum body monotube gas), BDS NX2 Shocks (Nitro Gas), or Fox 2.5 Performance Elite Adjustable Shocks (2.5-inch diameter aluminum body with ride adjustment knobs), which are included for the front and rear.

All possible SKUs depending on option selected: BDS1608H, BDS1608FS, BDS1608FPE, BDS1620H, BDS1620FS, BDS1620FPE, BDS1780H, BDS1780FS, BDS1780FPE

Features and Benefits:

• Allows use of up to 37-inch diameter tires
• 4-Link upgrade improves handling
• Premium quality components
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 5 hours
• Choose from BDS NX2, Fox 2.0 Performance, or Fox 2.5 Performance Elite Shocks
• Made in the USA
• No Fine Print Lifetime Warranty
• 37 inch x 13.5 inch w/ 17 inch x 9 and 5.625 inch backspacing
• 35 inch x 12.5 inch w/ 18 inch x 9 and 4.5 inch backspacing

Shock Options

• BDS NX2 Nitro: Nitro-charged, twin-tube design, steel body with Silver powder coat finish
• Fox 2.0 Performance Series: 2-inch aluminum body, mono-tube gas design, 5/8 inch steel shaft, anodized finish
• Fox 2.5 Performance Elite: 2.5-inch aluminum body, 7/8-inch steel shaft, external reservoirs, DSC external ride-adjustment

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
