2" 2021-2024 Ford F150 4WD Suspension Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1911FSL
$2290.75
- +
2290.75

2" 2021-2024 Ford F150 4WD Suspension Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1911FSL
From $2,290.75

2" 2021-2024 Ford F150 4WD Suspension Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1911FSL
From $2,290.75


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

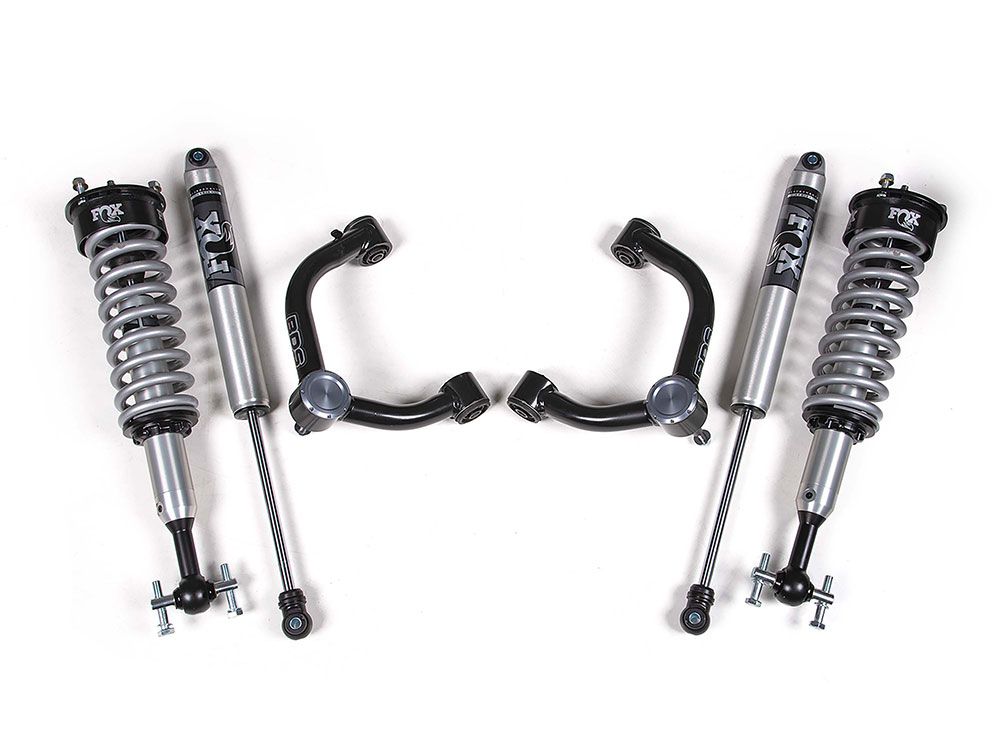

This BDS Suspension BDS1911FSL 2 inch Suspenison Lift Kit for the Ford F150 is a premium suspension upgrade that will level the front of your truck with the rear. Not only will it lift your vehicle 2" but will improve the ride quality of your rig by utilizing the Fox 2.0 Performance Series Coilovers. The non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. Made out of 6061 T6 aluminum body to provide better heat dispersion along with an internal floating piston, eliminating oil aeration.

BDS Upper Control arms are included, improving suspension travel and providing superior strength and styling to the factory arms. Built from 1.5" OD heavy wall tubing, fully welded and integrated support gussets, these arms are tough. These upper control arms feature a brake line mounting tab and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The arms are fully assembled with OE style rubber bushings for the frame mounts and boast a high quality ball joint for smooth, quiet operation while maintaining better durability than OEM arms that use heims and uniballs. Fox 2.0 Performance Series IFP shocks are designed to work hand in hand with the front coilover system. All in all this kit allows for up to 35" tires under your truck!

Features and Benefits:

  • Levels front with the rear
  • Includes Fox 2.0 Performance shocks and coilovers
  • Heavy duty steel construction
  • Powder coated for durability
  • Est. Installation: 3 hours
  • Allows use of 35 inch x 12.5 inch w/ 20x9 and 5.5 inch backspacing
  • Install difficulty (easy 1-5 complex): 3
  • No Fine Print Lifetime Warranty
  • Proudly made in the USA, using only premium quality components

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Works with bar pin lower strut mounts. For eye style lower strut mounts, use 2009-13 model kits.
  • Control arms with sensors are designed to keep the sensor arm in the stock position (same position as the OE control arm).
  • Not designed to work with trucks with CCD (Continuously Controlled Damping).
  • Do NOT hit the aluminum knuckle on later model trucks with a hammer to separate the ball joint. Use the appropriate ball joint separation tool.
  • For replacement ball joints, use BDS081203. Ball joint is directional and must be installed with the dot facing either inward or outward on the vehicle, otherwise damage may occur.
  • Special Service Tool 204-592 recommended to dislodge the ball joint.
  • This system has not been tested on models equipped with Ford BlueCruise.
  • Vehicle Fitment
    MakeFord
    ModelF150
    Year Fitment2024, 2023, 2022, 2021
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1911FSL
    Item Numberbds_bds1911fsl
    Product LineLift Kits
    Lift Height2 inch
