2" 2019-2025 Dodge Ram 2500 Power Wagon 4wd Pintop Lift System by Carli Suspension

This Carli Suspension CS-DPT25-19-PW Pintop 2-inch lift system for the Dodge Ram 2500 4WD Power Wagon models is an ultra-premium lift kit that will lift your vehicle enough to fit up to 37-inch x 12.5-inch tires. Using custom-tuned King 2.5" Remote Reservoir Shocks, this kit is perfect for Ram owners wanting the best ride quality and off-roading performance. It is excellent for on-road, highway, towing/hauling, and slow to high-speed off-road use.

This lift kit system features 2-inch lift front coil springs with a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5-inch-diameter body houses a custom piston designed for heavy-duty truck applications. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

An adjustable front track bar is included to keep the front axle centered properly. In typical Carli fashion, this bar has features not found in other track bars. This includes 3/8-inch DOM construction that allows for the use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Radius arm drop brackets lower the factory radius arms, rotating the axle back to factory angles to maintain proper caster and geometry. Made from 1/4-inch cold-rolled steel, these heavy-duty brackets will provide a solid link between the arms and chassis.

In the rear, Carli gives you the choice of rear coil springs that will best suit your needs. R1 coil springs provide .5 to 1 inch of rear lift. These are designed to soften the ride by sacrificing some load capacity (maxed at 1,500 lbs). R2 coil springs provide 2 to 3 inches of rear lift and maintain the factory payload but have a firmer ride.

Rear Track Bar: As the Ram 2500’s suspension cycles, the rear axle naturally shifts side-to-side, creating rear yaw that can be felt in the cab. To correct this, Carli offers two solutions: a rear track bar drop bracket that minimizes axle movement while retaining the factory-length bar, or the Carli Extended Rear Track Bar, which dramatically increases track bar length and improves geometry. The result is reduced yaw, improved stability, and far more predictable handling on and off the road.

Features & Benefits:

• 2 inch front lift / .5 to 2 inch rear lift
• Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing, and slow to high speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance.
• Greatly improves ride qualit.y
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Radius arm drop brackets keep the proper front caster
• Choose between rear coil springs: R1 for softer ride / less payload, R2 for factory payload
• Front Travel = 9.3" / Rear Travel = 11" (50% more suspension travel than stock)
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 37 inch x 12.5 tires

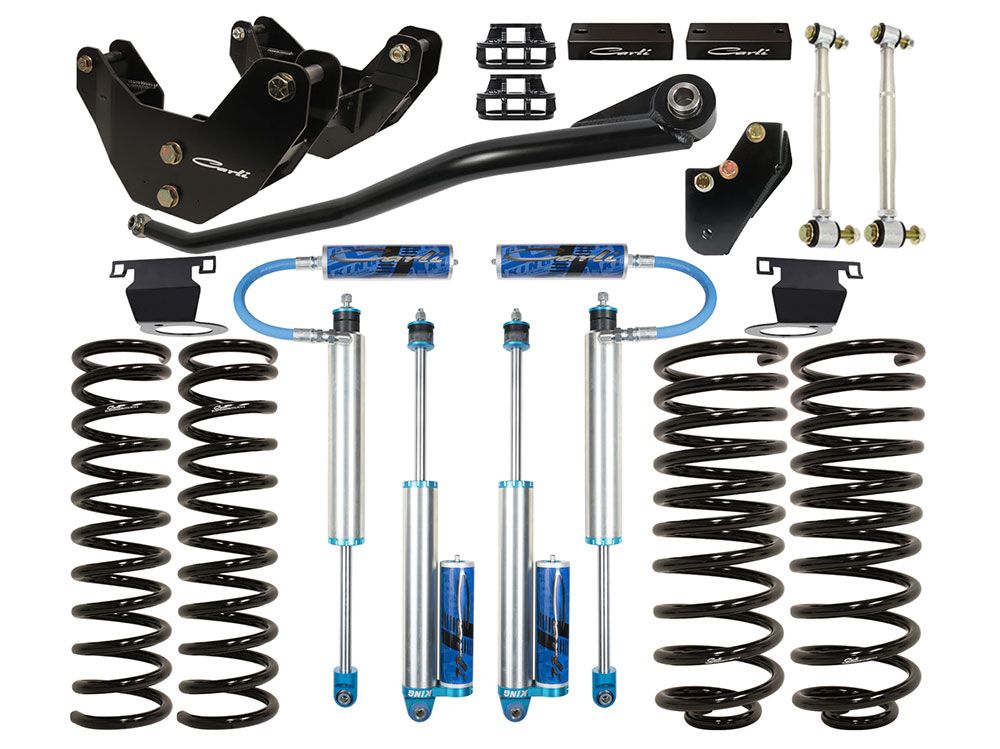

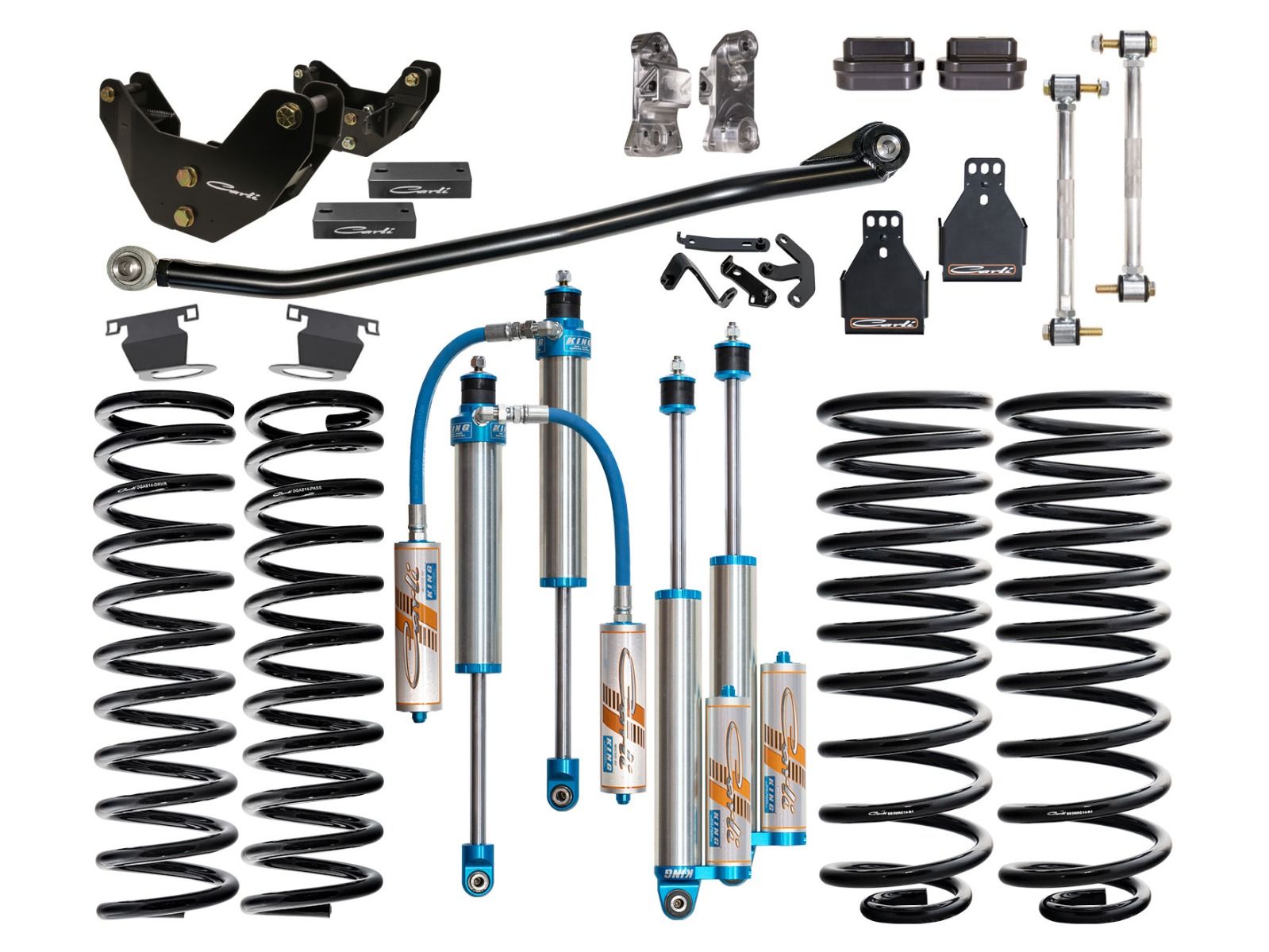

Components Included:

• CS-DEL-R-14: Rear Sway Bar End Links
• CS-DFBD-1: Front Bump Stop Drops
• CS-DLRC-14-H: Front Liner-Rate Coil Springs
• CS-DMRC-14-R1 or R2: Rear Multi-Rate Coil Springs
• CS-DATB-1419: Adjustable Track Bar
• CS-DRAD-1419: Radius Arm Drop Brackets
• CS-DCM-20-HK: Transmission Crossmember, extended hardware
• CS-DRBD-AL: Rear Bump Stop Drops
• CS-DPWSKIDBLK-14: Power Wagon Skid Plate Drop Bracket
• CS-DPT25SPKG-14-H: Carli Tuned King 2.5 Remote Resi Front & Rear Shocks, with Resi Mounts and Brakeline Tabs
• CS-DVDBRKT-19: Harmonic Damper Relocation Bracket

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in the options section above.
