2.5" 2020-2026 Ford F250/F350 Super Duty 4WD (w/Diesel Engine) Front Coil Spring Leveling Kit by ReadyLift

The ReadyLIFT 46-20252 2.5-Inch Front Coil Spring Leveling Kit is designed for 2020–2026 Ford F-250 and F-350 Super Duty 4WD trucks equipped with the diesel engine. By replacing the factory front coil springs with taller ReadyLIFT springs, this system provides 2.5 inches of front lift for a more level stance, increased ground clearance, and additional room for larger wheels and tires while retaining the factory shocks.

Unlike a basic spacer leveling kit, the 46-20252 uses replacement front coil springs engineered specifically for the Super Duty platform. A track bar relocation bracket helps maintain proper front axle positioning at the increased ride height, while sway bar spacers, brake line extension brackets, and shock extensions help maintain proper suspension geometry and component travel.

With the proper wheel specifications, this kit provides clearance for up to 35-inch tires without rubbing. Larger 37-inch tires may also be possible depending on wheel specifications but can require additional trimming. The result is a clean, leveled stance with the ride quality and capability expected from a properly engineered Super Duty suspension system.

Features & Benefits

• Provides 2.5 inches of front lift
• Replacement front coil springs provide lift without coil spacers
• Retains the factory front shocks with included shock extensions
• Track bar relocation bracket helps maintain proper front axle positioning
• Sway bar spacers maintain proper sway bar geometry
• Brake line extension brackets accommodate the increased ride height
• Increases ground clearance and provides a more level stance
• Allows clearance for up to 35-inch tires with proper wheel specifications

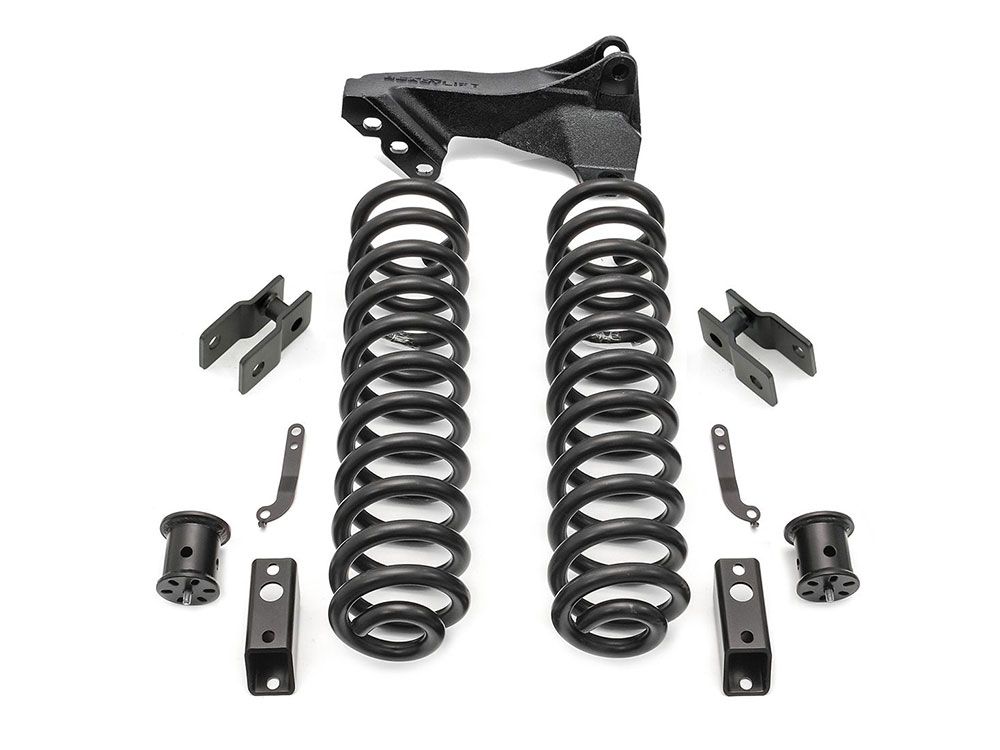

Includes

• 2.5" Lift Front Coil Springs
• Front Track Bar Relocation Bracket
• Sway Bar Spacers
• Brake Line Extension Brackets
• Front Shock Extensions
• Necessary Installation Hardware
