3.5" 2019-2024 Dodge Ram 3500 4wd (w/Diesel Engine) Backcountry Lift System by Carli Suspension

This Carli Suspension CS-D3-BC-CS-1319-D Backcountry 3.5 inch lift system for the Dodge Ram 3500 4wd diesel models is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. It is perfect for Ram owners wanting the best ride quality during on-road, highway, towing/hauling along with slow to mid speed off road use.

Featured in this lift kit system are 3.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 remote reservoir shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome plated shafts are also used.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Radius arm drop brackets lower the factory radius arms which rotates the axle back to factory angles to maintain proper caster and geometry. Made from 1/4 inch cold rolled steel these heavy duty brackets will provide a solid link between the arms and chassis.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 2" lift add-a-pack kit (most economical and maintains factory payload) or the Carli progressive rate 2" lift leaf springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a 3/4 ton spec. You can make your selection in the options section below.

Features & Benefits:

• 3.25 to 3.5 inch front lift (depending on cab configuration) / 0 to 2.5 inch rear lift
• Premium lift kit optimized for on-road road quality, towing and slow to mid speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli SPEC 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
• Shocks are fully serviceable and rebuild-able
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Radius arm drop brackets keep proper front caster
• Rear lift is optional, but Carli progressive 2" lift leaf springs are highly recommended for ride quality and a level ride (see in options below)
• Front Travel = 9.5" / Rear Travel = 11.3" (50% more suspension travel than stock)
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 37 inch x 12.5 tires

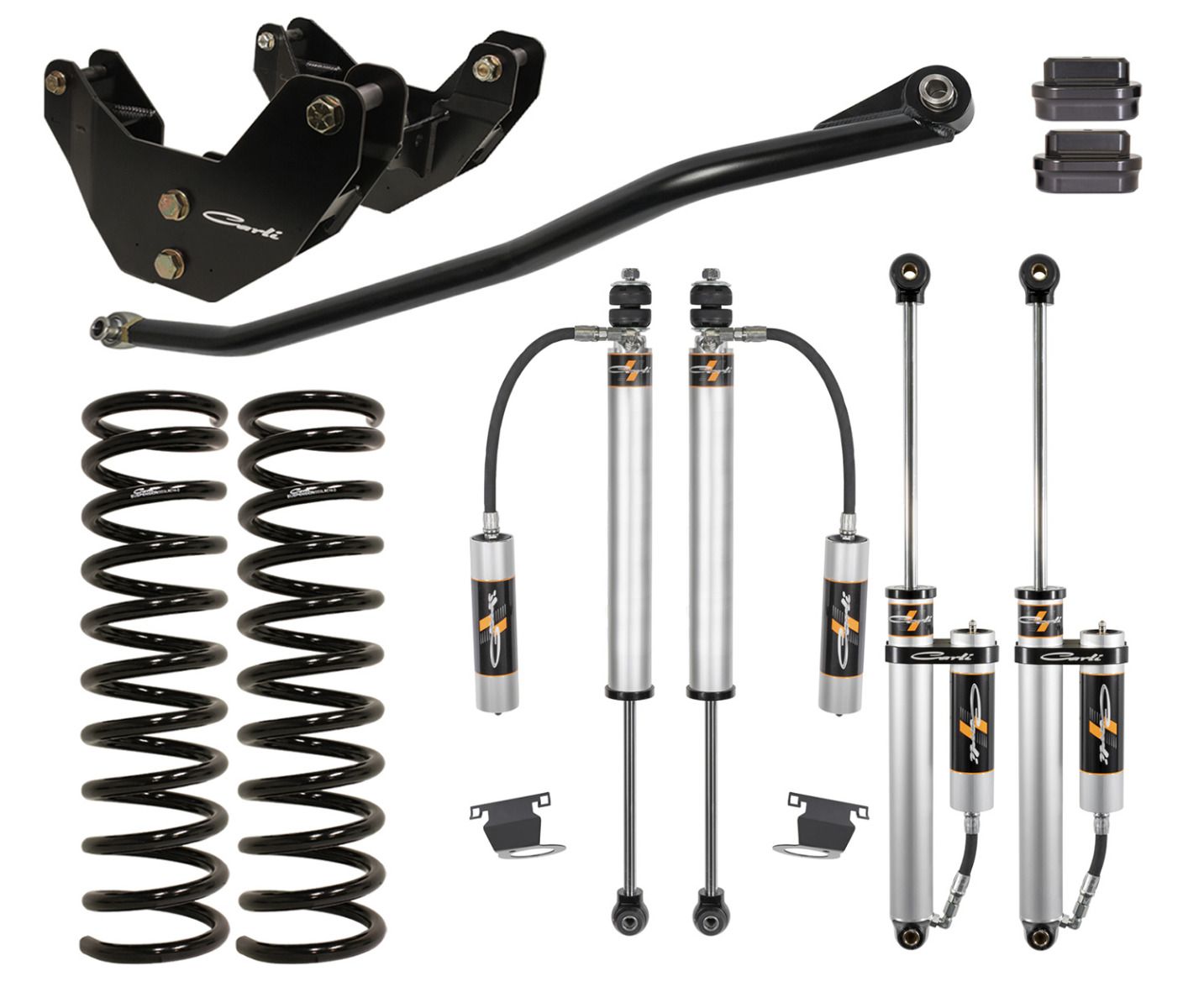

Components Included:

• CS-DFBD-1: Front Bump Stop Drops
• CS-DLRC-14-D: Front Liner-Rate Coil Springs
• CS-DATB-1419: Adjustable Track Bar
• CS-DRAD-14: Radius Arm Drop Brackets
• CS-DCM-20-HK: Transmission Crossmember, extended hardware
• AS-D3SPKG-CS20RR-A: Carli SPEC 2.0 Resi Shocks, Front and Rear, Reservoir Mounts

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The billet aluminum drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.
