3.5" 2019-2024 Dodge Ram 3500 4wd (w/Diesel Engine & Factory Auto Level Air Suspension) Pintop Lift System by Carli Suspension Brand: Carli Suspension | SKU: CS-DPT25-1319-D-ALAS
$4855
- +
4855

3.5" 2019-2024 Dodge Ram 3500 4wd (w/Diesel Engine & Factory Auto Level Air Suspension) Pintop Lift System by Carli Suspension

Brand: Carli Suspension | SKU: CS-DPT25-1319-D-ALAS
$4,855.00

3.5" 2019-2024 Dodge Ram 3500 4wd (w/Diesel Engine & Factory Auto Level Air Suspension) Pintop Lift System by Carli Suspension

Brand: Carli Suspension | SKU: CS-DPT25-1319-D-ALAS
$4,855.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

;



View all Options Available for this Kit

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Carli Suspension CS-DPT25-1319-D-ALAS Pintop 3.5 inch lift system for the Dodge Ram 3500 4wd diesel models with the factory auto level rear suspension is a ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. Using custom tuned King 2.5" Remote Reservoir Shocks this kit is perfect for Ram owners wanting the best ride quality and off-roading performance. Excellent during on-road, highway, towing/hauling along with slow to high speed off road use.

Featured in this lift kit system are 3.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Radius arm drop brackets lower the factory radius arms which rotates the axle back to factory angles to maintain proper caster and geometry. Made from 1/4 inch cold rolled steel these heavy duty brackets will provide a solid link between the arms and chassis.

The base kit does not lift the rear, however for a level ride and improved ride quality you will want to choose the Carli progressive rate 2" lift leaf springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality. Also included are spacers for the factory air bags and extended sensors for proper function of the factory air leveling bags.

Features & Benefits:

  • 3.25 to 3.5 inch front lift (depending on cab configuration) / 0 to 2 inch rear lift
  • Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing and slow to high speed off-roading
  • Front linear rate coil springs - with reduced linear rate to improve ride quality
  • King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
  • Remote reservoir increases oil capacity for better heat management and better overall performance
  • Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
  • Radius arm drop brackets keep proper front caster
  • Rear lift is optional, but Carli progressive 2" lift leaf springs are highly recommended for ride quality and a level ride (see in options below)
  • Front Travel = 9.3" / Rear Travel = 13" (50% more suspension travel than stock)
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 37 inch x 12.5 tires

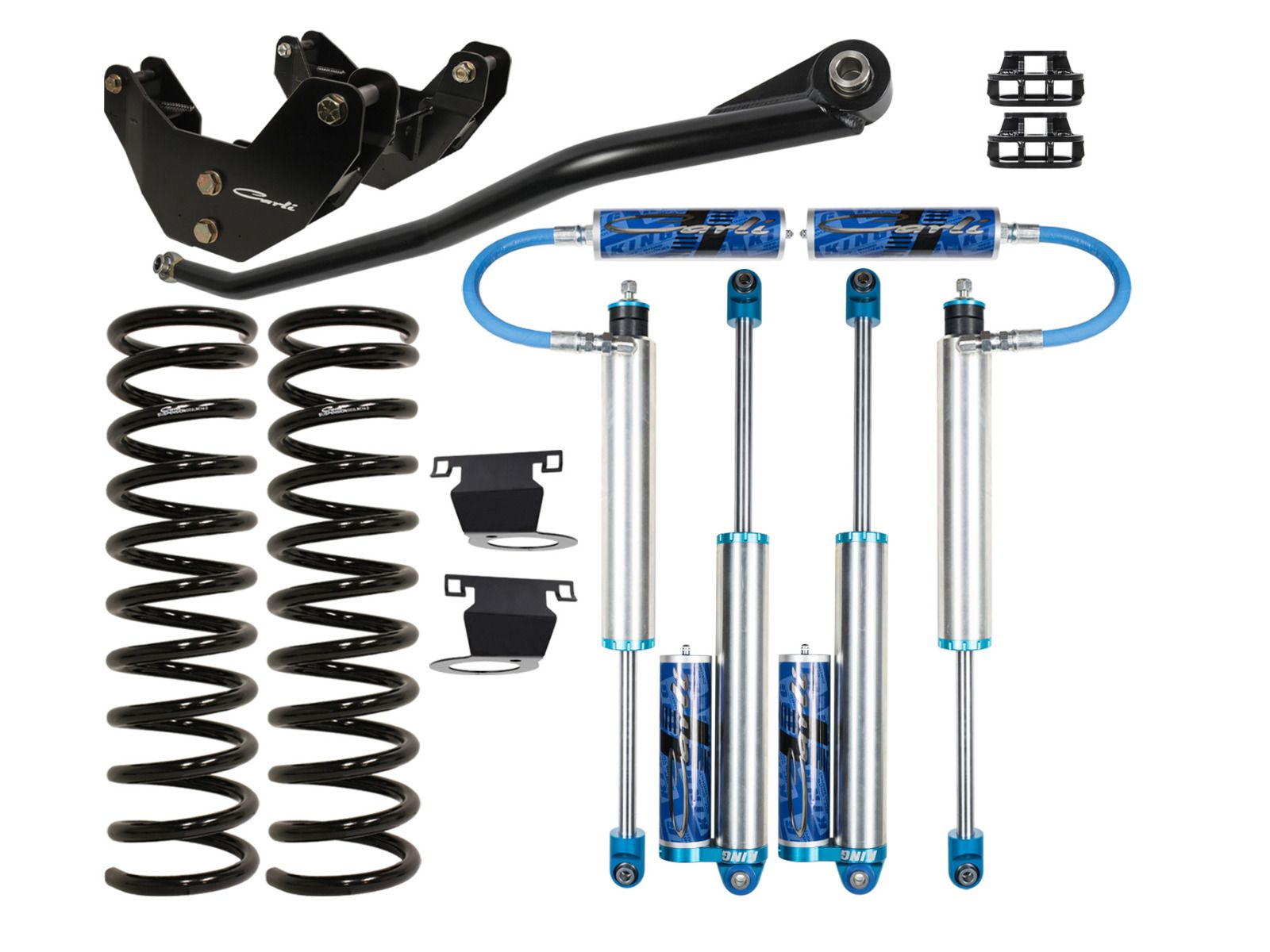

Components Included:

  • CS-DFBD-1: Front Bump Stop Drops
  • CS-DLRC-14-D: Front Liner-Rate Coil Springs
  • CS-DATB-1419: Adjustable Track Bar
  • CS-DRAD-14: Radius Arm Drop Brackets
  • CS-DCM-20-HK: Transmission Crossmember, extended hardware
  • CS-DPT25SPKG-13-D-ALAS: Carli Tuned King 2.5 Remote Resi Front & Rear Shocks, with Resi Mounts and Brakeline Tabs

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The billet aluminum drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.

Important Notes1. Work with rear auto-level air suspension only.
2. Fits with diesel engine only
3. While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly (see options below)
4. Rear progressive leaf springs sold as an option (largely in case you have already purchased them), but strongly recommended.

Available Options

Rear Lift (strongly recommended)
Ram 3500 2019-2024 Dodge 4WD (Diesel Engines w/Factory Air Assist) 1" ALAS Full Progressive Rear Leaf Spring Kit by Carli Suspension

These Carli Full Progressive Rear Leaf Springs for the Ram 3500 with factory air assist are manufactured by Deaver Spring Mfg, in exclusive partnership with Carli Suspension. These springs represent a two-stage design, carefully balancing the truck's weight-carrying capacity while delivering a smooth and comfortable ride on city streets. They are engineered for optimal comfort, whether you're navigating urban roads or tackling off-road terrain.

To accomidate the Ram 3500 models with factory air assist Carli has included relocation brackets for the air bag, senor and airtank.

  • Softens the initial spring rate at ride height
  • Includes sensor, bag and airtank relocation along with air line, hardware and fitting
  • Two-stage design for a balance of weight capacity and comfort
  • Deaver Spring Mfg partners exclusively with Carli Suspension
  • Includes: driver and passenger rear leaf springs along with ubolts with hardware
  • Suitable for Daily Drivers and Weekend Warriors, perfect for work and play
  • Provides a 1-inch rear lift, maintaining a slight rear high stance with Carli 3-inch Systems
  • Minimizes issues like axle wrap and wheel hop
Read More

These Carli Full Progressive Rear Leaf Springs for the Ram 3500 with factory air assist are manufactured by Deaver Spring Mfg, in exclusive partnership with Carli Suspension. These springs represent a two-stage design, carefully balancing the truck's weight-carrying capacity while delivering a smooth and comfortable ride on city streets. They are engineered for optimal comfort, whether you're navigating urban roads or tackling off-road terrain.

To accomidate the Ram 3500 models with factory air assist Carli has included relocation brackets for the air bag, senor and airtank.

  • Softens the initial spring rate at ride height
  • Includes sensor, bag and airtank relocation along with air line, hardware and fitting
  • Two-stage design for a balance of weight capacity and comfort
  • Deaver Spring Mfg partners exclusively with Carli Suspension
  • Includes: driver and passenger rear leaf springs along with ubolts with hardware
  • Suitable for Daily Drivers and Weekend Warriors, perfect for work and play
  • Provides a 1-inch rear lift, maintaining a slight rear high stance with Carli 3-inch Systems
  • Minimizes issues like axle wrap and wheel hop
$2390
Leaf Spring Shackle
Ram 3500 2013-2024 Dodge 4WD Fabricated Rear Leaf Spring Shackle Kit by Carli Suspension

The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

  • Greasable and Rebuildable
  • Far Better Ride than Factory Shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
Read More

The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

  • Greasable and Rebuildable
  • Far Better Ride than Factory Shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
$265
Front Sway Bar Options (required)
1 of 2 options
Ram 3500 2013-2024 Dodge 4WD (w/3" of lift) Stock Swaybar Drop Bracket Kit

Carli's solid billet aluminum Sway Bar Drops are designed to return your lifted vehicle's sway bar to factory angles. Crafted using cutting-edge machining technology, these drops guarantee precise alignment of your Sway Bar and also create sufficient space for coil clearance.

  • Constructed out of solid machined billet aluminum
  • Designed for factory sway bar
  • Hard-anodized construction for corrosion resistance
  • Eliminate binding that can occur when sway bar is not properly dropped on lifted models
Read More

Carli's solid billet aluminum Sway Bar Drops are designed to return your lifted vehicle's sway bar to factory angles. Crafted using cutting-edge machining technology, these drops guarantee precise alignment of your Sway Bar and also create sufficient space for coil clearance.

  • Constructed out of solid machined billet aluminum
  • Designed for factory sway bar
  • Hard-anodized construction for corrosion resistance
  • Eliminate binding that can occur when sway bar is not properly dropped on lifted models
$155
2 of 2 options
Ram 3500 2013-2024 Dodge 4WD (w/2.5-4" of Front Lift) Torsion Sway Bar by Carli Suspension

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
Read More

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
$835
Radius Arms
Ram 3500 2013-2024 Dodge 4WD (w/3.25" of lift) Fabricated Radius Arm System by Carli Suspension

These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.

  • Massive Strength Upgrade vs. Stock Arm
  • Improved ride quality and control
  • Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
  • 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
Read More

These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.

  • Massive Strength Upgrade vs. Stock Arm
  • Improved ride quality and control
  • Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
  • 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
$1685
Low-Mount Steering Stabilizer
Ram 3500 2013-2024 Dodge 4WD Low Mount Steering Stabilizer by Carli Suspension

This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.

  • Direct bolt-in replacement
  • Corrects left tire pull, adjustable
Read More

This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.

  • Direct bolt-in replacement
  • Corrects left tire pull, adjustable
$340
High-Mount Steering Stabilizer
Ram 2500/3500 2019-2024 Dodge 4WD High Mount Steering Stabilizer by Carli Suspension

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.

  • Simple, Bolt-in Installation
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.

  • Simple, Bolt-in Installation
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
$545
Front Differential Guard
Ram 3500 2013-2024 Dodge 4WD Front Differential Guard by Carli Suspension

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
Read More

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
$225
Heavy Duty Ball Joints
Ram 3500 2013-2024 Dodge 4WD Extreme Duty Upper & Lower Ball Joints by Carli Suspension

These ultra heavy duty ball joints could be last you will need to purchase for your truck. They are that good.

  • Set of Upper and Lower Ball Joints
  • LIFETIME Advanced-Replacement Warranty
  • Copper Plated, Carburized and Dry-Lubed
  • Includes a tube of Redline CV2 Grease
Read More

These ultra heavy duty ball joints could be last you will need to purchase for your truck. They are that good.

  • Set of Upper and Lower Ball Joints
  • LIFETIME Advanced-Replacement Warranty
  • Copper Plated, Carburized and Dry-Lubed
  • Includes a tube of Redline CV2 Grease
$940
Vehicle Fitment
MakeDodge
ModelRam 3500
Year Fitment2024, 2023, 2022, 2021, 2020, 2019
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-DPT25-1319-D-ALAS
Item Numbercar_cs-dpt25-1319-d-alas
MPN(UPC)883584135814
Product LineLift Kits
Lift Height3.5 inch
