2.5" 2019-2024 Dodge Ram 3500 4wd (w/Diesel Engine) Leveling System by Carli Suspension

This Carli Suspension CS-DLVL-CS-19-D 2.5-inch front leveling system for the Dodge Ram 3500 4wd diesel models is a high-quality kit that will lift the front end enough to sit level with the rear while also improving ride quality and suspension performance.

This leveling system features 2.5-inch lift front coil springs with a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 IFP shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. An internal reservoir with a 5/8-inch diameter hardened steel chrome-plated shaft is also featured.

In the rear, 1 inch billet lift blocks are used (2019 + models sit lower in the rear than 2013-2018 models), along with extended u-bolts.

Features & Benefits:

• 2.5-inch front lift / 1-inch rear lift
• High-quality components
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli SPEC 2.0 IFP Front and Rear Shocks - 2" diameter aluminum body with internal reservoir
• Shocks are fully serviceable and rebuildable
• 1-inch rear lift blocks and extended u-bolts lift the rear
• Rear shocks are custom tuned for use with factory coil spring to maximize ride quality
• Designed to improve ride quality for on-road, highway and towing/hauling
• Front Travel = 9.5" / Rear Travel = 11"
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires

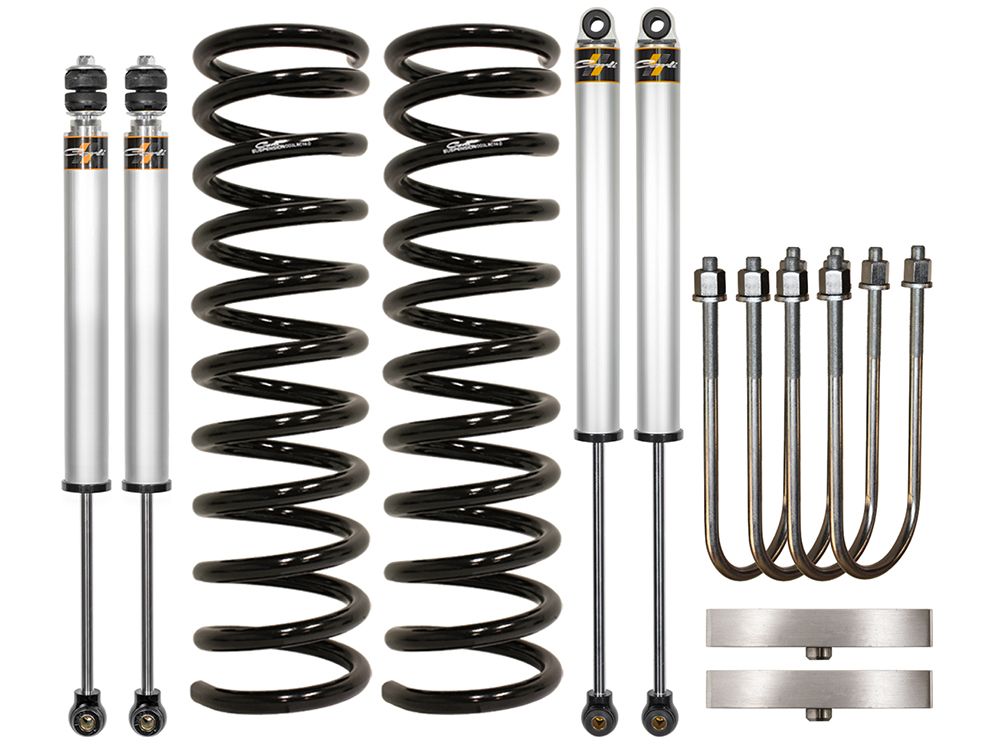

Components Included:

• CS-DLRC-14-LVL-D: Front Coil Springs
• AS-DLVLSPKG-CS20IFP-A: Carli SPEC 2.0 IFP Front & Rear Shocks
• CS-DRBKIT-1-4.25: Rear billet blocks and ubolt kit

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in the option section above.
