2.5" 2019-2025 Dodge Ram 3500 4wd (w/Diesel Engine) BackCountry Leveling System by Carli Suspension

This Carli Suspension CS-DLVL-BC-CS-19-D Backcountry 2.5-inch front leveling system for the Dodge Ram 3500 4WD diesel models is a leveling kit that lifts the front end to sit level with the rear. More importantly, this high-end leveling kit will improve ride quality and performance in both on-road and off-road conditions.

This leveling system features 2.5-inch lift front coil springs with a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 remote reservoir shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome-plated shafts are also used.

An adjustable front track bar is included to keep the front axle centered properly. In typical Carli fashion, this bar has features not found in other track bars. This includes 3/8-inch DOM construction that allows for the use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear 1 1-inch billet lift blocks are used (2019 + models sit lower in the rear than 2013-2018 models) along with extended U-bolts.

Features & Benefits:

• 2.5-inch front lift / 1-inch rear lift
• Premium quality components
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli SPEC 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
• Shocks are fully serviceable and rebuildable
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Designed to improve ride quality for on-road, highway, towing/hauling, and slow to mid-speed off-road
• 1-inch rear lift blocks and extended ubolts lift the rear
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Front Travel = 9.5" / Rear Travel = 11"
• Lifetime warranty on components, 1-year warranty on shocks
• Allows use of up to 35-inch x 12.5 tires

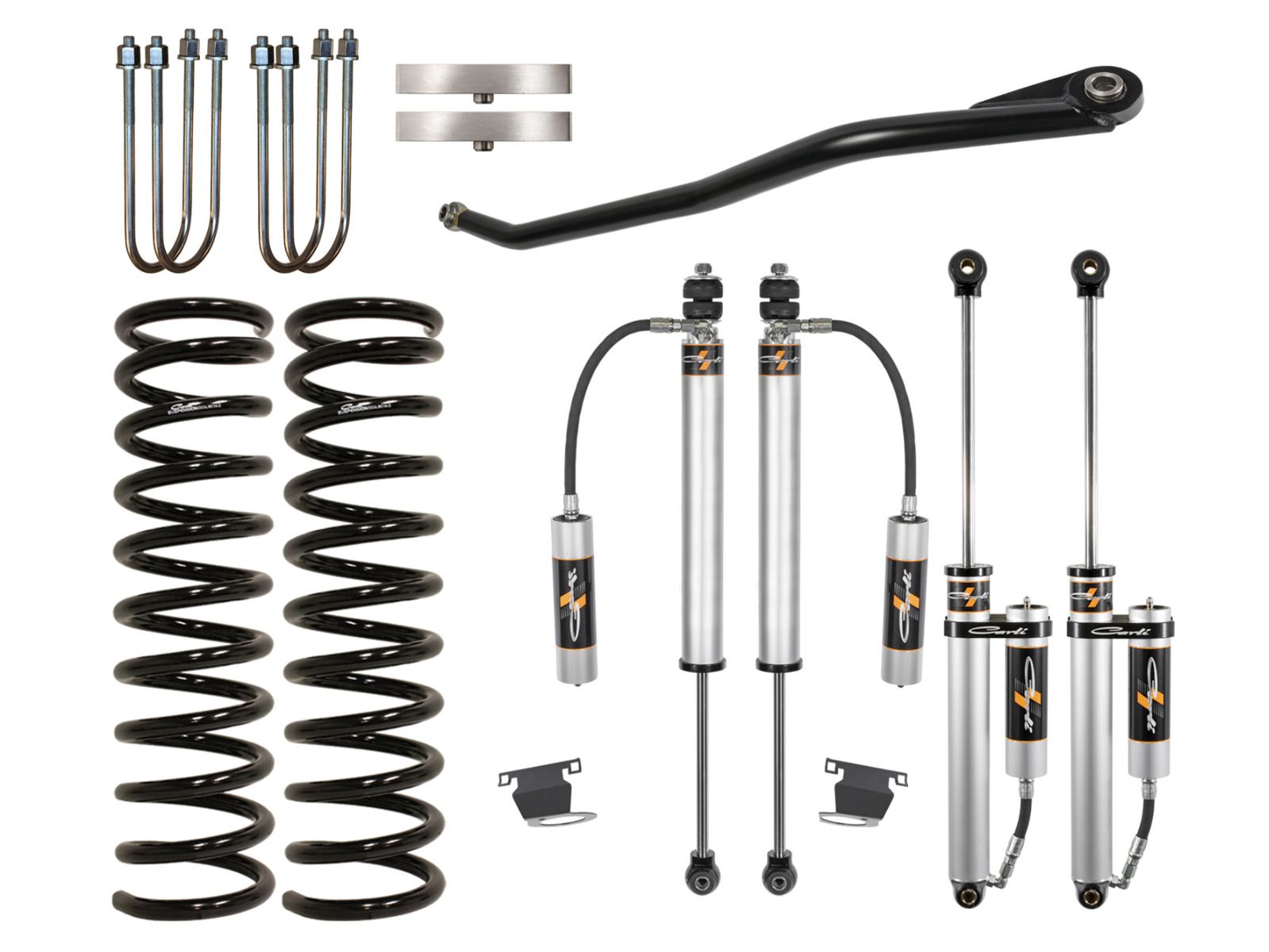

Components Included:

• CS-DLRC-14-LVL-D: Front Coil Springs
• CS-DLVLSPKG-CS20RR-B: Carli SPEC 2.0 Remote Resi Front & Rear Shocks, with Resi Mounts and E-Brake Relocation Brackets
• CS-DATB-1419: Adjustable Track Bar
• CS-DRBKIT-1-4.25: Rear billet blocks and ubolt kit

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in the options section above.
