2.5" 2019-2025 Dodge Ram 3500 4wd (w/Diesel Engine) Pintop Leveling System by Carli Suspension

This Carli Suspension CS-DPT25-LVL-19-D-3500 Pintop 2.5-inch front leveling system for the Dodge Ram 3500 4wd diesel models is the ultimate performance leveling kit to get your truck sitting level with the rear. It is designed to greatly improve ride quality in on-road conditions and supremely enhance off-road performance with the use of custom-tuned King 2.5" Remote Reservoir Shocks.

This leveling system features 2.5-inch lift front coil springs with a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4" stainless shaft that is machined and polished, meaning there is no finish or coating to wear off. The 2.5-inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

An adjustable front track bar is included to keep the front axle centered properly. In typical Carli fashion, this bar has features not found in other track bars. This includes 3/8-inch DOM construction that allows for the use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear 1 inch billet lift blocks are used (2019 + models sit lower in the rear than 2013-2018 models) along with extended u-bolts.

Features & Benefits:

• 2.5-inch front lift / 1-inch rear lift
• Ultimate Performance Leveling Kit on the market today
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Designed to improve ride quality for on-road, highway, towing/hauling, and slow to high speed off-road
• 1-inch rear lift blocks and extended ubolts lift the rear
• Adjustable Track Bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Front Travel = 9" / Rear Travel = 11"
• Lifetime warranty on components, 1-year warranty on shocks
• Allows use of up to 35-inch x 12.5 tires

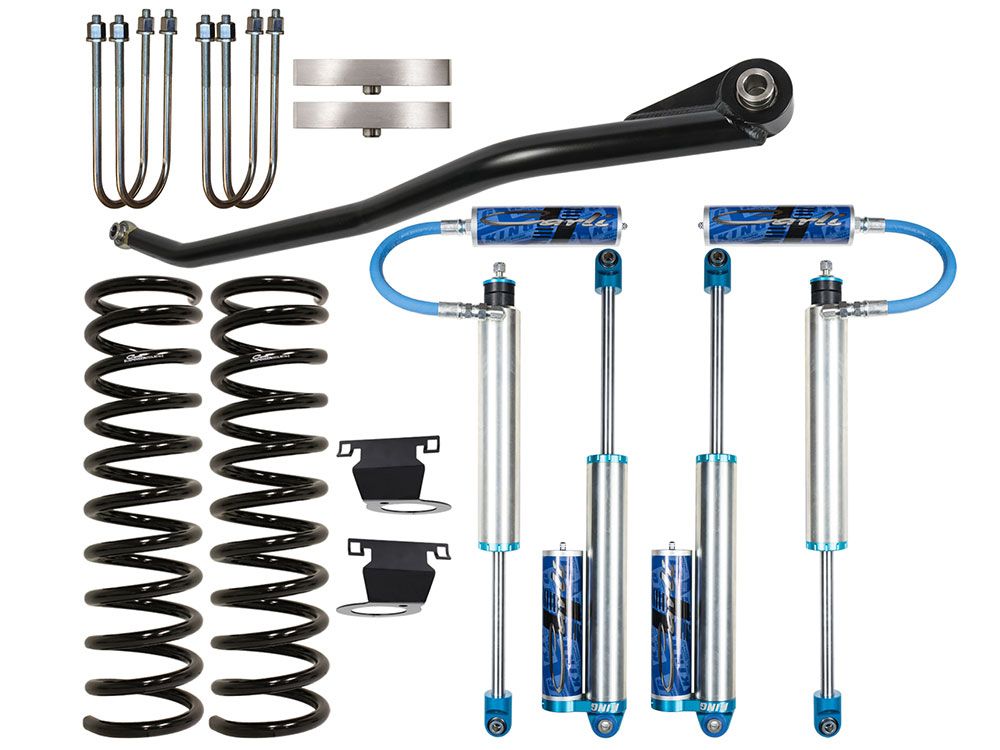

Components Included:

• CS-DLRC-14-LVL-D: Front Coil Springs
• CS-DPT25SPKG-LVL-13-D: Carli Tuned King 2.5 Remote Resi Front & Rear Shocks, with Resi Mounts and Brakeline Tabs
• CS-DATB-1419: Adjustable Track Bar
• CS-DRBKIT-1-4.25: Rear billet blocks and ubolt kit

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in the options section above.
